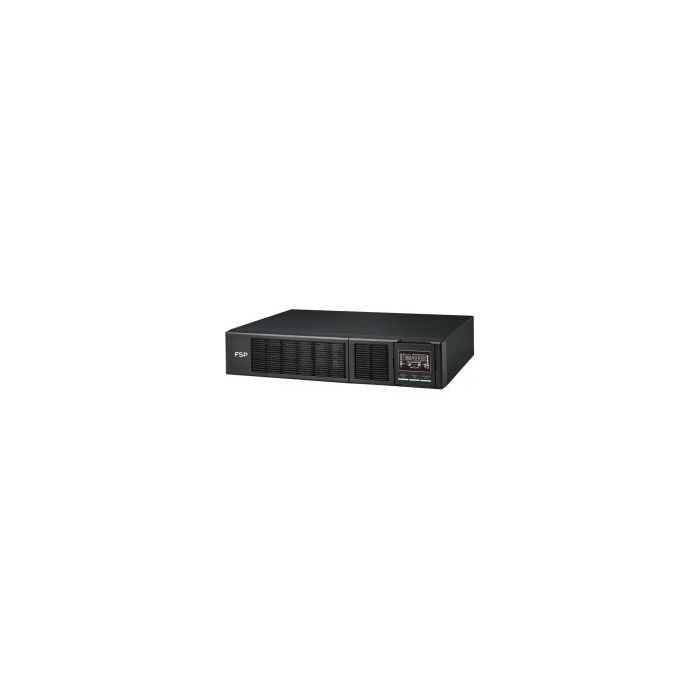

Fortron Source UPS Clippers Rack/Tower 2000VA/2000W, On-line double conversion, USB, RS-232, EPO, 8×C13, 4×9Ah, LCD

- Clippers series is a premium featured online double conversion UPS with Rack/Tower design and high efficiency to reduce customer‘s total cost of ownership.
- The internal hot-swappable battery increases system reliability and reduces MTTR; the parallel function is designed for future equipment expansion.
- Its special firmware design can adapt to various applications like laser printers and ultrasound devices and supports long backup time with battery monitoring.

Features
- True double conversion
- Output power factor 1
- Rack/Tower 2 in 1 design with rotatable LCD
- Super Charger up to 8A
- Output voltage regulation < 1%
- Higher output crest ratio 3:1
- 50Hz/60Hz frequency converter mode
- Programmable power management outlets
- Emergency power off function (EPO)
- Hot-swappable battery design
- ECO mode for energy saving
- Support for laser printers and ultrasound systems
- Full-time over-voltage cut-off and surge protection
- High power factor charger with low ripple current
- Low input THDi to reduce power system pollution
- Adjustable charging current via LCD panel
- Smart battery charger design to optimize battery performance
- Genset compatible

Specifications
- Topology: On-line Single Phase
- Capacity: 2000 VA / 2000W
- Typical Recharge Time (up to 90% capacity): 3 hours
- Power Factor: ? 0.99 @ Nominal Voltage (100% load)
- Input Frequency: 40Hz ~ 70Hz
- Input Voltage Range: 160-300 VAC ±5%
- Output Voltage: ± 1% (Batt. Mode)
- Output Frequency Range: 46 Hz ~ 54 Hz or 56Hz ~ 64 Hz (Synchronized Range)
50 Hz or 60 Hz ±0.1 Hz (Batt. Mode)
- Wave Form: Pure Sinewave
- Battery: 12V/9Ah, 4 pcs inside
- Battery Type & Number: 12V / 9Ah x 4
- Intelligent Slot: SNMP, AS400, RS485-Modbus
- Network Ports: USB, RS-232, EPO
- Operating Environment / Humidity: 20-90 % RH @ 0- 40°C (non-condensing)
- Noise Level: Less than 50dB @ 1 Meter
- Dimensions: 438 x 88 x 510
- Weight: 19 500g
- OS: Supports Windows® 98/XP/2000/Vista/7/8/10, Windows® Server 2000/2003/2008/2012/2016, Linux, and MAC
