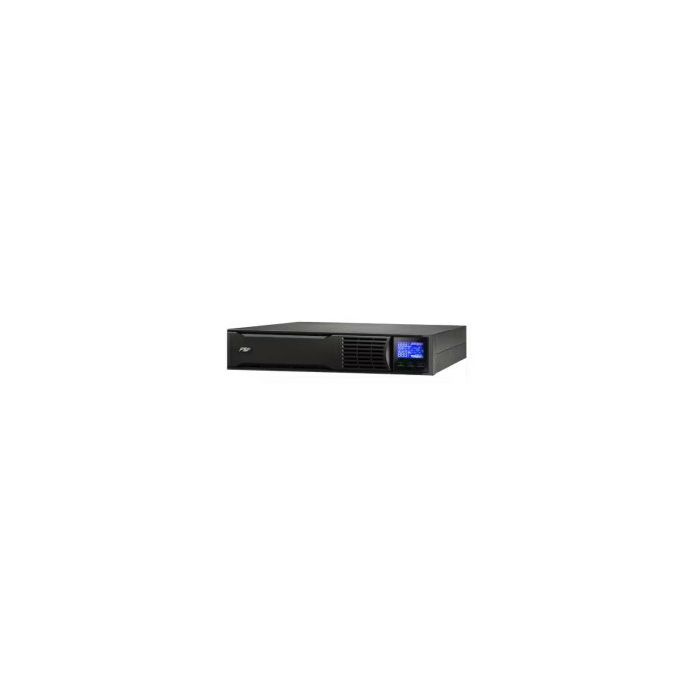

Fortron Source UPS Champ Rack 3000VA/2700W, On-line double conversion, USB, RS-232, 3×Schuko, 6×9Ah, LCD

- FSP Champ Rack Series is the high density version of double-conversion online UPS with a output power factor 0.9.
- It’s designed in small cabinet with microprocessor controller.
- It also has USB and RS-232 communication ports as standard, with a built-in intelligent slot for additional adapters, protocol converters and relate contact cards.

Specifications
- Topology: On-line Single Phase
- Capacity: 3000VA/2700W
- Typical Recharge Time (up to 90% capacity): 4 hours
- Power Factor: ? 0.99 @ Nominal Voltage (100% load)
- Input Frequency: 40Hz ~ 70Hz
- Input Voltage Range: 120-300 VAC
- Output Outlet: 3 schuko
- Output Voltage: ± 1% (Batt. Mode)
- Output Frequency Range: 47.5 Hz ~ 52.5 Hz or 57Hz ~ 63 Hz (Synchronized Range)
50 Hz ±0.25 Hz or 60 Hz ±0.3 Hz (Batt. Mode)
- Wave Form: Sine wave
- Battery: 6 pcs 12V 9Ah inside
- Battery Type & Number: 12V / 9Ah x 6
- Intelligent Slot: SNMP
- Network Ports: USB, RS-232
- Operating Environment / Humidity: 20-90 % RH @ 0- 40°C (non-condensing)
- Noise Level: Less than 50dB 1 Meter
- Dimensions: 421 x 190 x 318
- Weight: 27,6 kg
- OS: Supports Windows® 98/XP/2000/Vista/7/8/10, Windows® Server 2000/2003/2008/2012/2016, Linux, and MAC
