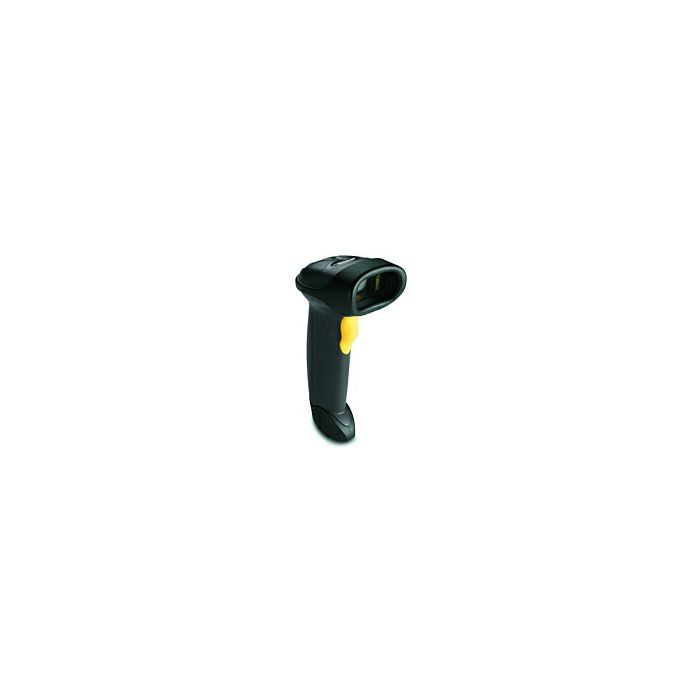

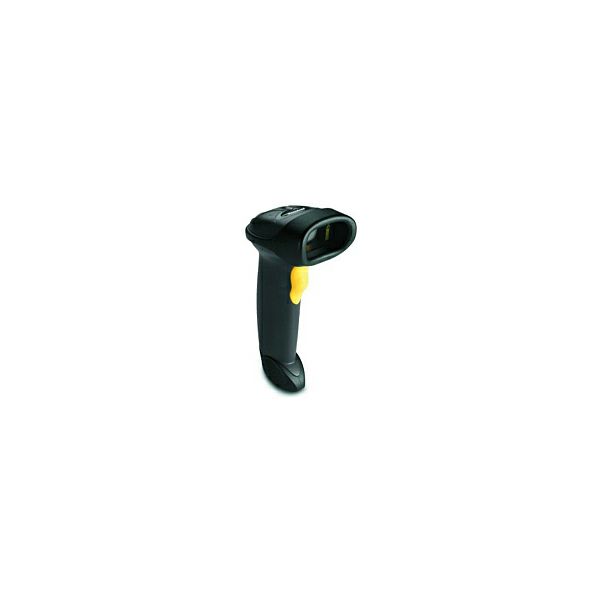

Zebra LS2208 1D laserski barcode čitač + stalak, USB, antracit

- The affordable Symbol LS2208 handheld barcode scanner provides fast, reliable scanning in an ergonomic, lightweight form
- The wide working range - from near-contact to 17 inches - makes this device ideal for retail, hospital, education or government settings
- Multiple on-board interfaces ensure integration with a variety of host systems

IDEAL FOR THESE APPLICATIONS
- Retail:
* Point of Sale (PoS)
* In-store inventory tracking
* 1D loyalty card processing
* 1D paper coupon redemption
- Education:
* Library book checkout
* Inventory and asset tracking

Specifications
PHYSICAL CHARACTERISTICS
- Dimensions (H×W×D): 15.2× 6.4× 8.5 cm
- Weight: 150 g
- Input Voltage Range:
* 4.5 to 5.5 VDC host powered
* 4.5 to 5.5 VDC external power supply
- Operating Current at Nominal Voltage (5.0V): 175 mA (typical)
- Standby Current (idle) at Nominal Voltage (5.0V): 90 mA (typical)
- Color: Cash Register White, Twilight Black
- Supported Host Interfaces: USB, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485
- Keyboard Support: Supports over 90 international keyboards
- User Indicators: Direct decode indicator, good decode LEDs, beeper (adjustable tone/volume)

PERFORMANCE CHARACTERISTICS
- Light Source: 650 nm Laser Diode Class 2
- Scan Pattern: Single line
- Scan Speed: 100 scans per second
- Scan Angle: 35°
- Minimum Print Contrast: 20% minimum reflective difference
- Skew Tolerance: +/- 10°
- Pitch Tolerance: +/- 65°
- Roll Tolerance: +/- 60°

USER ENVIRONMENT
- Operating Temperature: 32° F to 122° F/0° C to 50° C
- Storage Temperature: -40° F to 158° F/-40° C to 70° C
- Humidity: 5% - 95% RH, non-condensing
- Drop Specification: Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete
- Tumble Specification: Designed to withstand 500 tumbles in 1.64 ft./0.5 m tumbler
- Environmental Sealing: IP30
- Electrostatic Discharge (ESD): ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect

SYMBOL DECODE CAPABILITY
- Scanning Technology: Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma). Refer to Product Reference Guide for complete list of symbologies
- Minimum Element Resolution: Code 39: 3.0 mil

ACCESSORIES
- Gooseneck Intellistand

REGULATORY
- Electrical Safety: EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + AC 2011; IEC 60950-1: 2005 + A1: 2009; UL 60950-1, second edition; CAN/CSA-C22.2 No. 60950-1-07
- EMI/RFI: FCC 47 CFR Part 15, Subpart B, Class B; ICES-003 Issue 4, Class B; Compliant with EMC Directive 2004/108/EC
- Laser Safety: CDRH Class II, IEC Class 2
- Environmental: Compliant with RoHS irective 2011/65/EU; EN 50581: 2012

UTILITIES AND MANAGEMENT
- 123Scan2: Programs scanner parameters, upgrades firmware, provides scanned bar code data and prints reports
- Symbol Scanner SDK: Generates a fully-featured scanner application, including documentation, drivers, test utilities and sample source code
- Scanner Management Service (SMS): Remotely manages your Zebra scanner and queries its asset information

DECODE RANGES (TYPICAL* )
* Printing resolution, contrast and ambient light dependent
- Code 39: 3 mil: 1.6 - 4.8 in./4.1 - 12.2 cm
- Code 39: 4 mil: 1.3 - 8.7 in./3.3 - 22.1 cm
- Code 39: 5 mil: 0.9 - 11.7 in./2.3 - 29.7 cm
- Code 39: 7.5 mil: 0.1 - 19.1 in./0.3 - 48.5 cm
- Code 39: 20 mil: 0 - 33.8 in./0 - 85.9 cm
- Code 39: 40 mil: 1 - 43.1 in./2.5 - 109.5 cm
- UPC: 13 mil (100%): 0 - 25.1 in./0 - 63.8 cm
