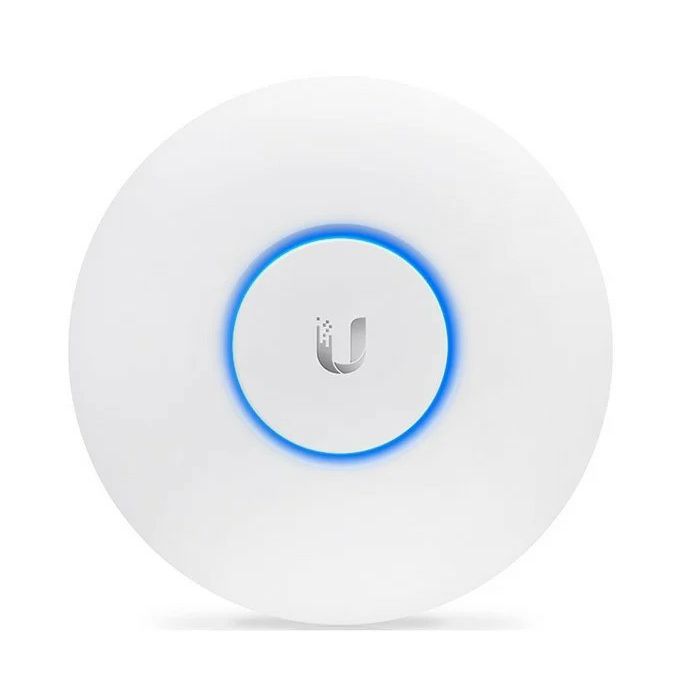

Ubiquiti UniFi UAP AC PRO pristupna točka

- The UniFi AC Pro AP features the latest Wi-Fi 802.11ac, 3x3 MIMO technology in a refined industrial design and is ideal for deployment of maximum-performance wireless networks

UP TO 5× FASTER WITH DUAL-RADIO 3x3 11AC MIMO TECHNOLOGY
- The UniFi AC Pro AP supports simultaneous dual-band, 3x3 MIMO technology in the 5 and 2.4 GHz radio bands

DESIGNED FOR OPTIMAL RF PERFORMANCE
- The newly redesigned UniFi Controller optimizes RF performance

VERSATILE DESIGN
- The UniFi AC Pro AP is a gigabit, 802.3af-powered access point suitable for indoor or outdoor use

SCALABLE ENTERPRISE Wi-Fi MAMAGEMENT
- The UniFi Controller v5 software is a powerful, enterprise wireless software engine ideal for high-density client deployments requiring low latency and high uptime performance
- With its software-based capabilities, the UniFi virtual control plane allows for unlimited scalability under one centralized controller
- Remotely access the UniFi Controller to upgrade deployed UniFi APs while in the field

Specifications
Mechanical
- Dimensions: 196.7 x 35 mm (O7.7 x 1.4")
- Weight:
• Without mount: 350 g (12.4 oz)
• With mount: 450 g (15.9 oz)

Hardware
- Networking interface: (2) GbE RJ45 ports
- Management interface: Ethernet
- Power method: PoE
- Passive PoE: 48V
- Power supply:
• UniFi PoE switch
• 48V, 0.5A PoE adapter (Included)*
*5-packs do not come with PoE adapters.
- Supported voltage range: 44—57V DC
- Max. power consumption: 9W

Max. TX power
• 2.4 GHz: 22 dBm
• 5 GHz: 22 dBm
• 6 GHz: -

MIMO
• 2.4 GHz: 3 x 3 (DL MU-MIMO)
• 5 GHz: 3 x 3 (DL MU-MIMO)
• 6 GHz: -

Max. data rate
• 2.4 GHz: 450 Mbps (BW40)
• 5 GHz: 1.3 Gbps (BW80)
• 6 GHz: -

Antenna gain
• 2.4 GHz: 3 dBi
• 5 GHz: 3 dBi
• 6 GHz:

- Button: Factory reset
- Mounting: Wall, ceiling (Included)
- Ambient operating temperature: -10 to 70° C (14 to 158° F)
- Ambient operating humidity: 5 to 95% noncondensing
- Certifications: CE, FCC, IC

Software
- WiFi standards: 802.11 a/b/g/n/ac
- Wireless security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
- BSSID: 4 per radio
- VLAN: 802.1Q
- Advanced QoS: Per-user rate limiting
- Guest traffic isolation: Supported
- Power save: Supported
- WMM: Voice, video, best effort, and background
- Concurrent clients: 250+

Supported Data Rates (Mbps)
• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11b: 1, 2, 5.5, 11 Mbps
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11n: 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
• 802.11ac: 6.5 Mbps to 1.3 Gbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80)
