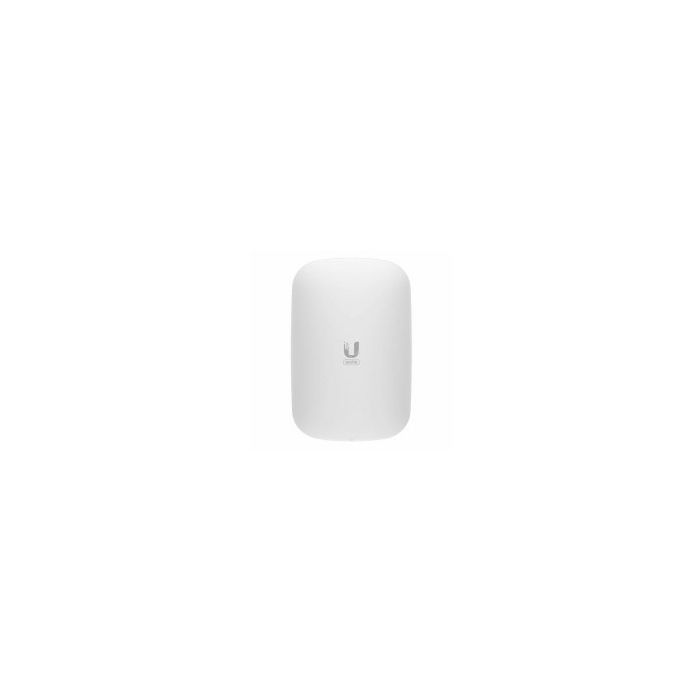

Ubiquiti U6-Extender- EU UniFi Access Point

- Easy-to-deploy WiFi 6 coverage extender that fits a standard wall outlet.

Features
- WiFi 6
- 6 spatial streams
- 115 m2 (1,250 ft2) coverage
- 300+ connected devices
- Powered with standard AC wall outlet*
- Wireless uplink to UniFi WiF

Specifications
Mechanical
- Dimensions
• US: 169.7 x 112.2 x 32.2 mm (6.7 x 4.4 x 1.3")
• EU: 169.7 x 112.2 x 77.6 mm (6.7 x 4.4 x 3.1")
- Weight: US: 290 g (10.2 oz)
- EU: 340 g (12 oz)
- E nclosure material: Polycarbonate

Hardware
- Management interface: Bluetooth
- Power method: Universal AC input, 100—240V AC, 0.3A Max., 50/60 Hz
- Supported voltage range: 110—240V AC
- Max. power consumption: 11W
- Max. TX power
• 2.4 GHz: 22 dBm
• 5 GHz: 26 dBm
• 6 GHz: –
- MIMO
• 2.4 GHz: 2 x 2 (UL MU-MIMO)
• 5 GHz: 4 x 4 (DL/UL MU-MIMO)
• 6 GHz: –
- Throughput rate
• 2.4 GHz: 573.5 Mbps
• 5 GHz: 4.8 Gbps
• 6 GHz: –
- Antenna gain
• 2.4 GHz: 5 dBi
• 5 GHz: 6 dBi
• 6 GHz: –
- LEDs: White/blue
- Button: Factory reset
- Ambient operating temperature: -10 to 50° C (14 to 122° F)
- Ambient operating humidity: 5 to 95% noncondensing
- Certifications: CE, FCC, IC

Software
- WiFi standards: 802.11a/b/g/n/ac/ax
- Wireless security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
- BSSID: 8 per radio
- VLAN: 802.1Q
- Advanced QoS: Per-user rate limiting
- Guest traffic isolation: Supported
- Concurrent clients: 300+
- Zero-wait DFS: Yes*
*Supported with upcoming firmware versions.

Supported Data Rates
- 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11b: 1, 2, 5.5, 11 Mbps
- 802.11g. 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11n (WiFi 4): 6.5 Mbps to 600 Mbps (MCS0 - MCS31 , HT 20/40)
- 802.11ac (WiFi 5): 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
- 802.11ax (WiFi 6): 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)

Application Requirements
- UniFi Network: Version 6.5.55 and later
