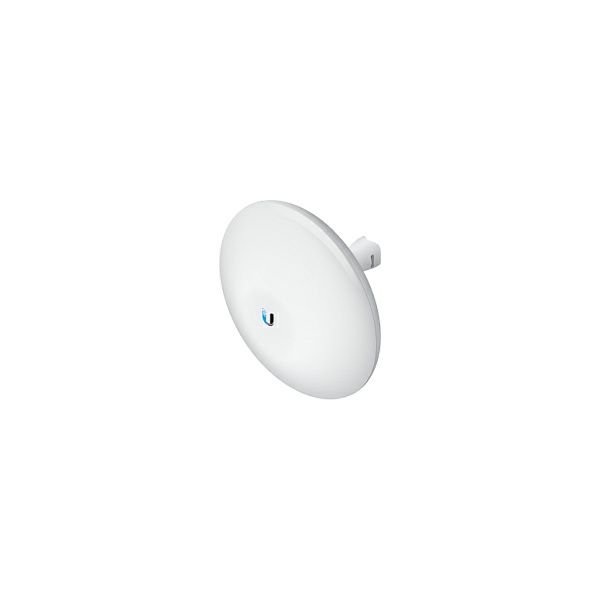

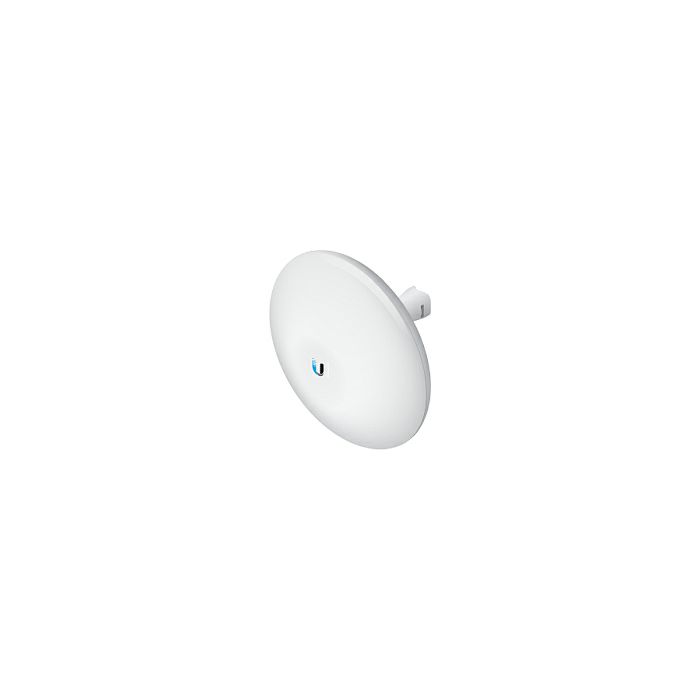

Ubiquiti airMax NanoBeam 5ac Gen2, 5GHz, 19dBi

MANAGEMENT Wi-Fi RADIO
- The NanoBeam AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device

IMPROVED SURGE PROTECTION
- The NanoBeam AC features enhanced protection against ESD events

SUPERIOR PROCESSING
- Ubiquitis airMAX engine with custom IC dramatically improves TDMA latency and network scalability
- The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology

PERFORMANCE BREAKTHROUGH
- airMAX ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance

ADVANCED SOFTWARE TECHNOLOGY
- Ubiquitis airMAX technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments
- The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks

PLUG AND PLAY INSTALLATION
- The NanoBeam AC mounts to a variety of surfaces including poles or walls, and offers the freedom of three-axis alignment
- No screws are required for pole-mounting, and only a single wall screw (not included) is required for wall-mounting

airOS 8
- airOS 8 provides powerful features, including airMAX ac protocol support, real-time RF analytics, and an all-new design for enhanced usability

Specification
- Power Supply: 24V, 0.5A Gigabit PoE Adapter (Included)
- Max. Power Consumption: 8.5W
- Gain: 19 dBi
- Networking Interface:
* 10/100/1000 Ethernet Port
* Wi-Fi for Management
- Processor: Atheros MIPS 74Kc, 720MHz
- Memory: 128MB DDR2, 8MB Flash
- LEDs: Power, Ethernet, (4) Signal Strength
- Signal Strength LEDs: Software-Adjustable to Correspond to Custom RSSI Levels
- Max. VSWR: 1.5:1
- Channel Sizes:
* PtP Mode: 10/20/30/40/50/60/80 MHz
* PtMP Mode: 10/20/30/40 MHz
- Polarization: Dual Linear
- Enclosure: Outdoor UV Stabilized Plastic
- Mounting: Pole-Mount (Kit Included), Wall-Mount
- Wind Loading: 45.4 N @ 200 km/h (10.2 lbf @ 125 mph)
- Wind Survivability: 200 km/h (125 mph)
- ESD/EMP Protection:
* Air: +/-24 kV
* Contact: +/-24 kV
- Operating Temperature: -40C to 80C (-40F to 176F)
- Operating Humidity: 5 to 95% Noncondensing
- Salt Fog Test: IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
- Vibration Test: IEC 68-2-6
- Temperature Shock Test: IEC 68-2-14
- UV Test: IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
- Wind-Driven Rain Test: ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
- Operating Frequency:
* 2412 - 2472 MHz
* 5150 - 5875 MHz
- Dimensions (Mount Included): 189×189×125 mm
- Weight (Mount Included): 0.530 kg
