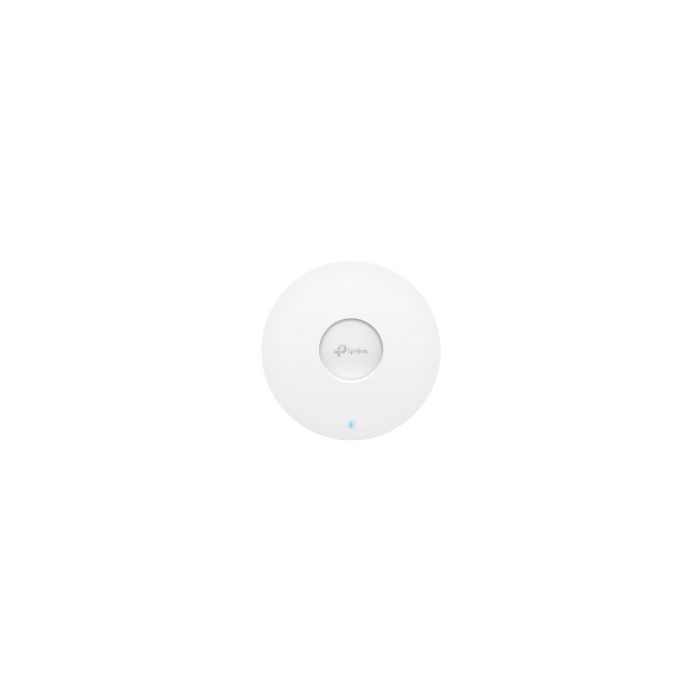

TP-Link Omada AX5400 bežična pristupna točka, zidna/stropna, WiFi 6, 574Mbps/4804Mbps (2.4GHz/5GHz), 802.3at PoE+, DC

- Blazing-Fast WiFi 6 Speeds (574 Mbps on 2.4 GHz + 4804 Mbps on 5 GHz).

- Integrated into Omada SDN, supporting centralized cloud Management, ZTP*, and more.

- 160 MHz Channel double the data at peak transmission times on a single stream.

- Advanced features: Supports seamless roaming§,Omada Mesh§, and more.

- Supports both 802.3at PoE+ and DC (adapter not included) power supply for flexible installations.

Specifications
HARDWARE FEATURES
- Interface: 1× 2.5 Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
- Button: Reset
- Power Supply
• 802.3at PoE
• 12 V / 2 A DC (Power adapter not included)
- Power Consumption
• EU: 20.8 W
• US: 22.3 W
- Dimensions ( W x D x H ): 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)
- Antenna Type: Internal Omni
• 2.4 GHz: 2× 4 dBi
• 5 GHz: 4× 5 dBi
- Bluetooth: Yes
- Mounting: Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES
- Coverage: 140?(1500 ft2)
- Concurrent Clients: 250+
- Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
- Frequency: 2.4 GHz and 5 GHz
- Signal Rate
• 5 GHz: Up to 4804 Mbps
• 2.4 GHz: Up to 574 Mbps
- Wireless Functions
• 1024-QAM
• 4× Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• MU-MIMO
• HE160 (160 MHz Bandwidth)‡
• Seamless Roaming §
• Omada Mesh§
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
- Wireless Security
• Captive Portal Authentication§
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
- Transmission Power
• CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, , band1 & band2, EIRP)
<30 dBm(5 GHz, , band3, EIRP)
• FCC:
<25 dBm (2.4 GHz)
<28 dBm (5 GHz)

MANAGEMENT
- Omada App: Yes
- Centralized Management
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller
- Cloud Access: Yes. Require the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
- Email Alerts: Yes
- LED ON/OFF Control: Yes
- Management MAC Access Control: Yes
- SNMP: v1, v2c, v3
- System Logging Local/Remote Syslog Local/Remote Syslog
- SSH: Yes
- Web-based Management: HTTP/HTTPS
- L3 Management: Yes
- Multi-site Management: Yes
- Management VLAN: Yes
- Zero-Touch Provisioning: Yes. Require the use of Omada Cloud-Based Controller.

OTHERS
- Certification: CE, FCC, RoHS
- Package Contents
• EAP673
• Ceiling/Wall Mounting Kits
• Installation Guide
- System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
- Environment
• Operating Temperature: 0–40 ? (32–104 ?)
• Storage Temperature: -40–70 ? (-40–158 ?)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
