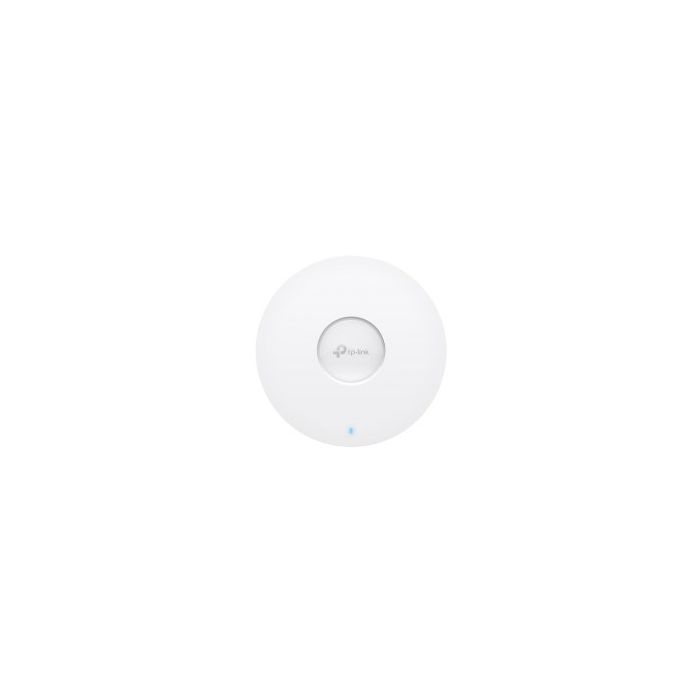

TP-Link Omada AX3000 bežična pristupna točka stropna Dual-Band Wi-Fi 6 (AP) 574Mbps/2402Mbps (2.4GHz/5GHz), 802.11ax/ac/n/g/b/a, 1×1GbE, 802.3at PoE, 2×interna antena

Ultra-Fast WiFi 6 Speeds:
- Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.

High-Efficiency WiFi 6:
- More connected devices can enjoy faster speeds.

Centralized Cloud Management:
- Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app.

160 MHz Channel:
- Double the data at peak transmission times on a single stream with HE160.

Seamless Roaming:
- Video streams and voice calls are unaffected as users move between locations.

Omada Mesh:
- Enables wireless connectivity between access points for extended range and flexible deployment.

PoE+ Powered:
- Supports both 802.3at PoE+ and DC (adapter included) power supply for flexible installations.

Ultra-Slim Design:
- 160 mm × 33.6 mm elegant design brings more agility.

Specifications
HARDWARE FEATURES
- Interface: 1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
- Button: Reset
- Power Supply
• 802.3at PoE
• 12V DC (Power Adapter included) (12 V / 1.0 A DC)
• 48V Passive PoE
- Power Consumption: 13.5 W
- Dimensions ( W x D x H ): 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)
- Antenna Type: Internal Omni
• 2.4 GHz: 2× 4 dBi
• 5 GHz: 2× 5 dBi
- Bluetooth: Yes
- Mounting
• Ceiling /Wall Mounting (Kits included)
• Junction Box Mounting

WIRELESS FEATURES
- Coverage: 140?(1500 ft2)
- Wireless Client Capacity: 250+
- Concurrent Clients: 250+
- Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
- Frequency: 2.4 GHz and 5 GHz
- Signal Rate
• 5 GHz: Up to 2402 Mbps
• 2.4 GHz: Up to 574 Mbps
- Wireless Functions
• 1024-QAM
• 4× Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• MU-MIMO
• HE160 (160 MHz Bandwidth)‡
• Seamless Roaming §
• Omada Mesh§
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
- Wireless Security
• Captive Portal Authentication§
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power
• CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, Band1 & Band2, EIRP)
<30 dBm(5 GHz, Band3, EIRP)
• FCC:
<25 dBm (2.4 GHz)
<25 dBm (5 GHz)

MANAGEMENT
- Omada App: Yes
- Centralized Management
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller
- Cloud Access: Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
- Email Alerts: Yes
- LED ON/OFF Control: Yes
- Management MAC Access Control: Yes
- SNMP: v1, v2c, v3
- System Logging Local/Remote Syslog: Local/Remote Syslog
- SSH: Yes
- Web-based Management: HTTP/HTTPS
- L3 Management: Yes
- Multi-site Management: Yes
- Management VLAN: Yes
- Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller.

OTHERS
- Certification: CE, FCC, RoHS
- Package Contents
• EAP650
• Power Adapter
• Ceiling/Wall Mounting Kits
• Installation Guide
- System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
- Environment
• Operating Temperature: 0–40 ? (32–104 ?)
• Storage Temperature: -40–70 ? (-40–158 ?)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
