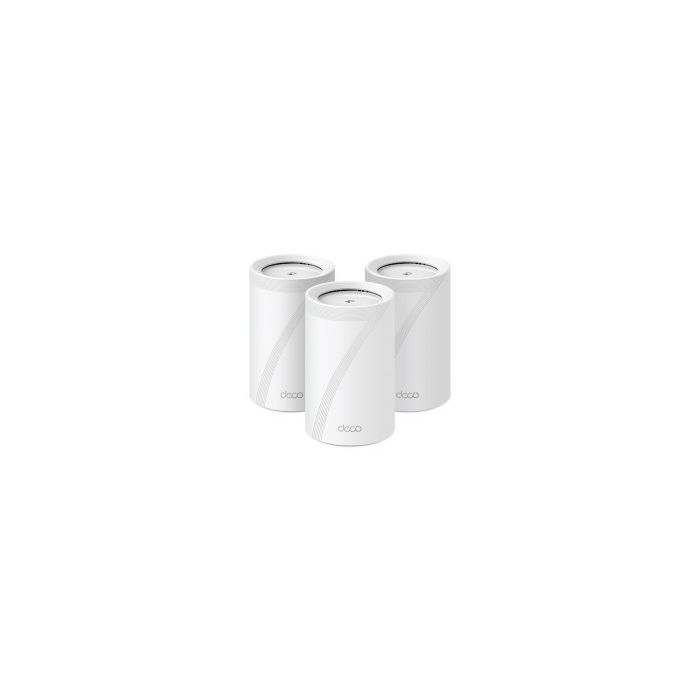

TP-Link BE9300 Whole Home Mesh Wi-Fi 7 System (Tri-Band)

9214 Mbps Tri-Band WiFi
- 5760 Mbps (6 GHz) + 2880 Mbps (5 GHz) + 574 Mbps (2.4 GHz).†

2.5 Gbps Wired Connections
- 4× 2.5 Gbps ports ensure max flexibility and boosted throughput.§

Wireless and Wired Combined Backhaul
- Connects a wireless and wired backhaul with each unit simultaneously to improve overall throughput and reduce latency.

Multi-Link Operation (MLO)
- Simultaneously send and receive data across different bands and channels to increase throughput, reduce latency, and improve reliability.?

320 MHz Channels
- Double the bandwidth and enables many more simultaneous transmissions at the fastest possible speeds.?

Works on the 6 GHz Band
- Minimizes congestion with greenfield spectrum, delivering robust high-speed connections.?

TP-Link HomeShield
- Provides comprehensive network protection, robust parental controls, and real-time IoT security.*

Universal Compatibility
- Backward compatible with all WiFi generations and works with any internet service provider (ISP) and modem.

Specifications
WIRELESS
- Standards: Wi-Fi 7
• IEEE 802.11be/ax 6 GHz
• IEEE 802.11be/ax/ac/n/a 5 GHz
• IEEE 802.11ax/n/b/g 2.4 GHz
- WiFi Speeds: BE9300
• 6 GHz: 5760 Mbps (802.11be)
• 5 GHz: 2880 Mbps (802.11be)
• 2.4 GHz: 574 Mbps (802.11ax)
- WiFi Range: Broader Whole Home Coverage
• TP-Link Mesh Technology
• Optional Ethernet backhaul work together to link Deco units to provide seamless coverage
• AI-Driven Mesh: Intelligently learns the network environment to provide ideal Wi-Fi unique to your home
• 4× High-Performance Antennas (Internal); Multiple antennas form a signal-boosting array to cover more directions and large areas
• Tri-Band: A newly-opened 6 GHz band brings more bandwidth and faster speeds
- WiFi Capacity: Very High
• Tri-Band: Distribute devices to different bands for optimal performance
• 2×2 MU-MIMO: Simultaneously communicates with multiple MU-MIMO clients
• OFDMA: Simultaneously communicates with multiple WiFi 7 clients
• 6 Streams: More than enough bandwidth for connected devices
- Working Modes
• Router Mode
• Access Point Mode
- Advanced Functions
• Multi-Link Operation (MLO)
• 320 MHz Channel
• 4K-QAM
• Multi-RUs
• Works with Alexa and Google Assistant

SECURITY
- Network Security
• SPI Firewall: Access Control
• HomeShield Security
• Real-Time IoT Protection
• Malicious Site Blocker
• Intrusion Prevention System
• DDoS Attack Prevention
• Home Network Scanner
- Guest Network
• 1× 6 GHz Guest Network
• 1× 5 GHz Guest Network
• 1× 2.4 GHz Guest Network
• Effective Time: Bandwidth Control
- VPN Server
• OpenVPN Server
• PPTP VPN Server
• L2TP/IPSec VPN Server
- VPN Client
• OpenVPN Client
• PPTP VPN Client
• L2TP/IPSec VPN Client
- WiFi Encryption
• WPA-Personal
• WPA2-Personal
• WPA3-Personal

HARDWARE
- Ethernet Ports: 4× 2.5 Gbps
*Per Deco Unit: Supports WAN/LAN auto-sensing
- USB Support:
• 1× USB 3.0 Port
• FTP Server
• Media Server
• Apple Time Machine
• Samba Server
- Buttons
• 1× Reset Button
• 1× WPS

SOFTWARE
- Advanced Features
• Reboot Schedule
• Tapo/Kasa Onboarding
• IoT network & Device Isolation
• Static Routing Function
• Node/Band Connection Preference
- Protocols
• IPv4
• IPv6
- Service Kits: HomeShield
- Parental Controls
• HomeShield Parental Controls
• Youtube Restriction
• SafeSearch
• Custom Profiles
• Professional Content Filter Library
• Family Time
• Bedtime
• Off Time
• Time Rewards
• Family Online Time Ranking
• Pause the Internet
• Weekly and Monthly Reports
- WAN Types
• Dynamic IP
• Static IP
• PPPoE
• PPTP
• L2TP
- Quality of Service
• HomeShield QoS
• QoS by Device
- Cloud Service
• OTA Firmware Upgrade
• TP-Link ID
• DDNS
- NAT Forwarding
• Port Forwarding
• UPnP
- IPTV
• IGMP Proxy
• IGMP Snooping
• Bridge
• Tag VLAN
- DHCP
• Address Reservation
• DHCP Client List
• Server
- DDNS: TP-Link
- Management: Deco App

PHYSICAL
- Dimensions (W×D×H): 4.23 × 4.23 × 6.93 in (107.5 × 107.5 × 176 mm)
- Package Contents
• Deco BE65 (3-pack)
• 3 Deco BE65 units
• 1 RJ45 Ethernet cable
• 3 Power adapters
• Quick Installation Guide

OTHERS
- Certifications: CE, FCC, RoHS
- Environment: Operating Temperature: 0°C~40°C (32 °F~104 °F)
- Storage Temperature: -40°C~60°C (-40 °F~140 °F)
- Operating Humidity: 10%~90% RH
- Storage Humidity: 5%~90% RH
