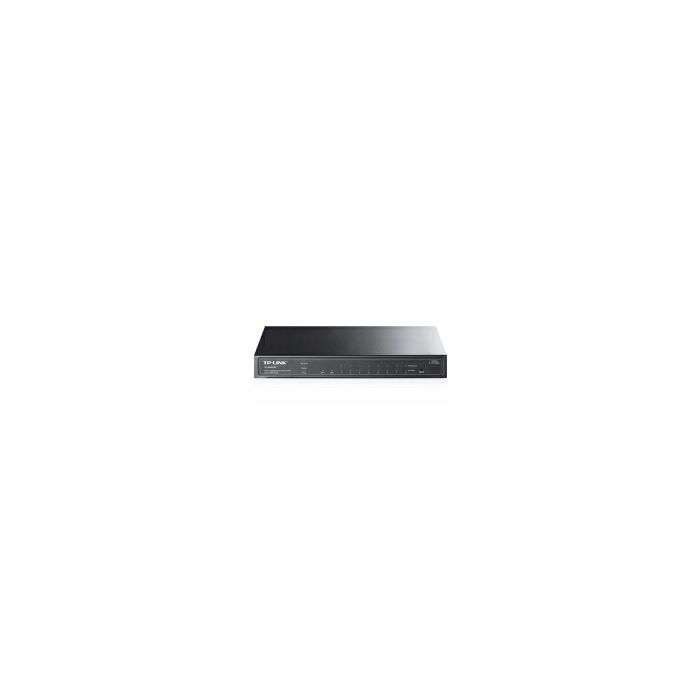

TP-Link 10-port Gigabit PoE+ Smart preklopnik (Switch), 8×10/100/1000M RJ45 ports + 2×SFP ports, metalno kućište (61W)

Features
- 61 W PoE Budget: 8× 802.3af/at-compliant PoE+ ports with a total power supply of 61 W
- Full Gigabit Ports: 8× gigabit PoE+ ports and 2× gigabit SFP Slots provide high-speed connections
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication, and more
- Optimized Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping
- Versatile Management: WEB/CLI managed modes, SNMP, and RMON bring abundant management features

Specifications
HARDWARE FEATURES
- Standards and Protocols:
* IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab,
* IEEE 802.3ad, IEE 802.3af, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s,
* IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
- Interface:
* 8× 10/100/1000Mbps RJ45 Ports
* 2× 1000Mbps SFP Slots
* (Auto-Negotiation/Auto MDI/MDIX)
- Network Media:
* 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
* 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
* 1000BASE-X: MMF, SMF
- Fan Quantity: Fanless
- Power Supply:
* 100~240VAC, 50/60Hz
* External Power Adapter(Output: 53.5VDC/1.31A)
- Power Consumption:
* 10.3 W (220 V/50 Hz) (no PD connected)
* 76.5 W (220 V/50 Hz) (with 61 W PD connected)
- PoE Ports (RJ45):
* Standard: 802.3af/at compliant
* PoE Ports: 8 Ports
* Power Supply: 61W
- Dimensions (W×D×H): 209×126×26 mm

PERFORMANCE
- Bandwidth/Backplane: 20 Gbps
- Packet Forwarding Rate: 14.88Mpps
- MAC Address Table: 8k
- Packet Buffer Memory: 4.1 Mbit
- Jumbo Frame: 9 KB

SOFTWARE FEATURES
- Quality of Service:
* 802.1p CoS/DSCP priority
* 8 priority queues
* Priority Schedule Mode
- SP (Strict Priority)
- WRR (Weighted Round Robin)
* Queue Weight Config
* Bandwidth Control
- Port/Flow based Rating Limit
* Smoother Performance
* Storm Control
- Multiple Control Modes(kbps/ratio)
- Broadcast/Multicast/Unknown-Unicast Control
L2 and L2+ Features
* 16 IP Interfaces
- Support IPv4/IPv6 Interface
* Static Routing
- 32 IPv4/IPv6 Static Routes
* DHCP Server
* DHCP Relay
- DHCP Interface Relay
- DHCP VLAN Relay
* DHCP L2 Relay
* Static ARP
* Proxy ARP
* Gratuitous ARP
* Link Aggregation
- Static link aggregation
- 802.3ad LACP
- Up to 8 aggregation groups and up to 8 ports per group
* Spanning Tree Protocol
- 802.1D STP
- 802.1w RSTP
- 802.1s MSTP
- STP Security: TC Protect, BPDU Filter/Protect,
-Root Protect
* Loopback Detection
* Flow Control
- 802.3x Flow Control
* Mirroring
- Port Mirroring
- CPU Mirroring
- One-to-One
- Many-to-One
- Flow-Based
- Ingress/Egress/Both
* Device Link Detect Protocol (DLDP)
* 802.1ab LLDP/ LLDP-MED
VLAN
* VLAN Group
- Max. 4K VLAN Groups
* 802.1Q tag VLAN
* MAC VLAN: 12 Entries
* Protocol VLAN
* GVRP
* Voice VLAN
Access Control List
* Support up to 230 entries
* Time-Range
- Time Slice
- Week Time-Range
- Absolute Time-Range
- Holiday
* Time-based ACL
* MAC ACL
- Source MAC
- Destination MAC
- VLAN ID
- User Priority
- Ether Type
* IP ACL
- Source IP
- Destination IP
- IP Protocol
- TCP Flag
- TCP/UDP Source Port
- TCP/UDP Destination Port
- DSCP/IP TOS
* IPv6 ACL
* Combined ACL
* Rule Operation
- Permit/Deny
* Policy Action
- Mirror
- Rate Limit
- Redirect
- QoS Remark
* ACL Rules Binding
- Port Binding
- VLAN Binding
* Actions for flows
- Mirror (to supported interface)
- Redirect (to supported interface)
- Rate Limit
- QoS Remark
Security
* AAA
* 802.1X
- Port based authentication
- MAC (Host) based authentication
- Authentication Method includes PAP/EAP-MD5
- MAB
- Guest VLAN
- Support Radius authentication and
accountability
* IP/IPv6-MAC Binding
- 512 Binding Entries
- DHCP Snooping
- DHCPv6 Snooping
- ARP Inspection
- ND Detection
* IP Source Guard
- 253 Entries
- Source IP+Source MAC
* IPv6 Source Guard
- 183 Entries
- Source IPv6 Address+Source MAC
* DoS Defend
* Static/Dynamic/Permanent Port Security
- Up to 64 MAC addresses per port
* Broadcast/Multicast/Unicast Storm Control
- kbps/ratio control mode
* Port Isolation
* Secure web management through HTTPS with
SSLv3/TLS 1.2
* Secure Command Line Interface (CLI)
management with SSHv1/SSHv2
* IP/Port/MAC based access control

MANAGEMENT
- Omada App:Yes
- Centralized Management:
* Omada Hardware Controller (OC300)
* Omada Hardware Controller (OC200)
* Omada Software Controller
- Cloud Access: Yes (Through OC300, OC200, or Omada Software Controller)
- Management Features:
* Web-based GUI
* Command Line Interface (CLI) through telnet
* SNMPv1/v2c/v3
* SNMP Trap/Inform
* RMON (1,2,3,9 groups)
* SDM Template
* DHCP/BOOTP Client
* Dual Image, Dual Configuration
* CPU Monitoring
* Cable Diagnostics
* EEE
* SNTP
* System Log

OTHERS
- Certification: CE, FCC, RoHS
- Package Contents:
* TL-SG2210P
* Power Adapter
* Installation Guide
* Rubber Feet
- System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8, MAC OS, NetWare, UNIX or Linux.
- Environment:
* Operating Temperature: 0 C~40 C ;
* Storage Temperature: -40 C ~70 C
* Operating Humidity: 10%~90% non-condensing
* Storage Humidity: 5%~90% non-condensing
