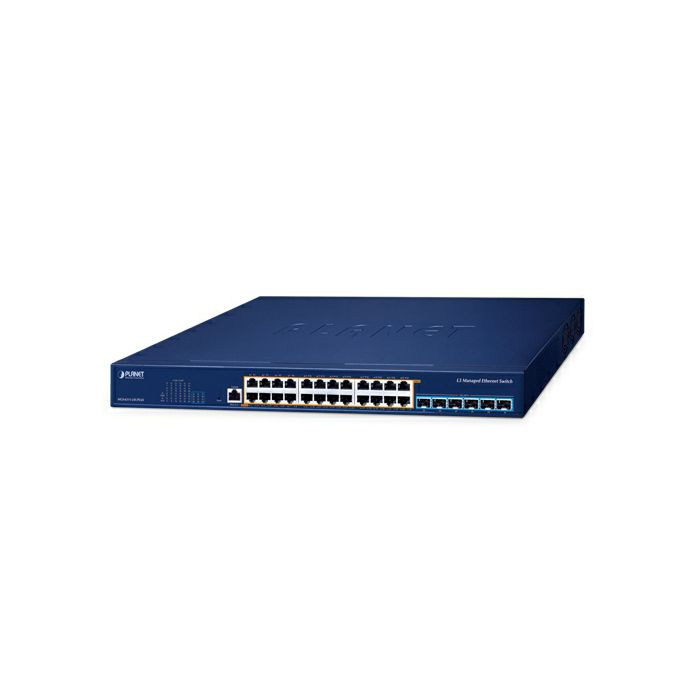

PLANET Layer 3 24-Port 2.5GBASE-T 95W 802.3bt PoE + 6-Port 10GBASE-X SFP+ Managed Ethernet Switch, 720W PoE budget, hardware-based Layer 3 RIPv1/v2, OSPFv2 dynamic routing

Key features:

Hardware Specifications:
- Copper Ports: 24x 10/100/1000/2500BASE-T RJ45 copper ports (ports 1 to 24)
- PoE Injector Port: 24x ports with IEEE 802.3bt PoE++ injector function (up to 95W per port, total 720W)
- 10G SFP+ Ports: 6x 10GBASE-SR/LR SFP+ interfaces (ports 25 to 30); Backward compatible with 1000/2500BASE-X SFP transceivers
- Console Port: 1x RJ45-to-RS232 serial port (9600, 8, N, 1)
- CPU: MIPS InterAptiv Dual-Core, up to 1GHz
- RAM: 512 MB
- Flash Memory: 32 MB
- ESD Protection: Contact ±6KV , Air ±8KV
- Surge Protection: Differential mode ±2KV , Common mode ±4KV
- Dimensions (W x D x H): 440 x 330 x 44 mm, 1U height
- Weight: 5076g
- Power Consumption: 29.1 watts / 99.3BTU (System)/818 watts/ 2791.1 BTU (System+PoE)
- Power Requirements- AC: AC 100~240V, 50/60Hz
- Fan: 6

Switching Specifications:
- Switch Architecture: Store-and-forward
- Switch Fabric: 240Gbps/non-blocking
- Switch Throughput: 178.56Mpps
- Address Table: 32K MAC address table with auto learning function
- ARP Table: 8K
- Routing Table: 12K
- IP Interface: 32
- ACL Table: 4K
- Shared Data Buffer: 16Mbit
- Multicast Table: 1K
- Jumbo Frame: 12KBytes
- Flow Control: Back pressure for half duplex; IEEE 802.3x pause frame for full duplex

PoE:
- PoE Standard: IEEE 802.3bt PoE++ PSE; Backward compatible with IEEE 802.3at/af PoE PSE
- PoE Power Supply Type: 802.3bt : End-span+Mid-span; 802.3at : End-span
- PoE Power Output: Port 1 to 24 – 95W (max.)
- Power Pin Assignment: 802.3bt: 1/2(-), 3/6(+), 4/5(+), 7/8(-); 802.3at PoE: End-span: 1/2(-), 3/6(+)
- PoE Power Budget: 720 watts (max)
- Number of 95W 802.3bt Type-4 PDs: 7
- Number of 60W 802.3bt Type-3 PDs: 12
- Number of 802.3at PDs: 24
