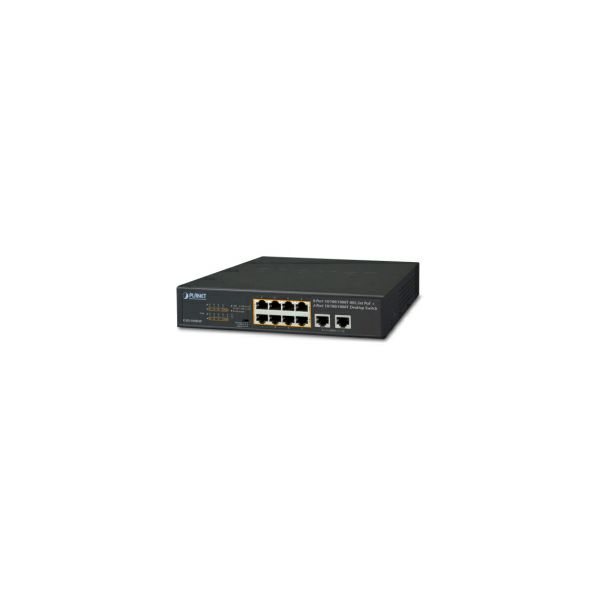

PLANET Gigabit preklopnik (Switch) 10" 10-port 10/100/1000Mbps sa 8-port IEEE 802.3at PoE+ Injector, 1U desktop/rack mountable (120W)

Key Features PHYSICAL PORT - 10-port 10/100/1000BASE-T Gigabit Ethernet RJ45 copper - 8-port IEEE 802.3at PoE+ Injector (Port-1 to Port-8) POWER OVER ETHERNET - Complies with IEEE 802.3at Power+ over Ethernet end-span PSE - Up to 8 ports of IEEE 802.3af/802.3at devices powered - Supports PoE power up to 30.8 watts for each PoE port - Each port supports 55V DC power to PoE powered device - 120-watt PoE budget - Auto detects powered device (PD) - Circuit protection prevents power interference between ports - Remote power feeding up to 100m in standard mode with 250m in extended mode SWITCHING - Hardware-based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X - Flow control for full duplex operation and back pressure for half duplex operation - IEEE 802.1Q VLAN transparency - Hardware DIP switch for Standard, VLAN and Extend mode selection; the Extend mode features 30-watt PoE transmit distance of 250m at speed of 10Mbps and VLAN isolation (Only for Port-1 to Port-8) - Solid DIP switch to isolate ports to prevent broadcast storm and defend DHCP spoofing HARDWARE - 9-inch desktop size, 1U height, rack mountable - LED indicators for system power, per port PoE ready and PoE activity, speed, Link/Act - Supports Energy-Efficient Ethernet (EEE) function (IEEE 802.3az) Specifications HARDWARE SPECIFICATIONS - Copper Port: 10 10/100/1000BASE-T MDI/MDIX Ports - PoE Injector Port: 8-port with 802.3at/af PoE injector function with Port-1 to Port-8 - Switch Architecture: Store-and-Forward - Switch Fabric: 20Gbps/non-blocking - Switch Throughput@64 bytes: 14.88Mpps@64 bytes - MAC Address Table: 8K entries, automatic source address learning and aging - Maximum Frame Size: 9K bytes - Flow Control: * IEEE 802.3x pause frame for full-duplex * Back pressure for half-duplex - LED: * System: Power (Green) * 10/100/1000BASE-T RJ45 interfaces: 10/100Mbps LNK/ACT (Red), 1000Mbps LNK/ACT (Green) * PoE interfaces: PoE-in-Use (Orange) - DIP Switch: Selectable operation mode (Standard / VLAN / Extend) - Dimensions (W×D×H): 220×150×43 mm (1U height) - Enclosure: Metal - Weight: 1260 g - Power Requirements: AC 100-240V, 50/60Hz, 2.5A max. - Power Consumption/ Dissipation: * System On: Max. 5.6 watts/19.1 BTU * Ethernet Full Loading: Max. 10.6 watts/36.1 BTU * PoE Full Loading: Max. 139 watts/474.2 BTU - ESD Protection: * Contact discharge of 4KV DC * Air discharge of 6KV DC - Thermal Fan: 1 POWER OVER ETHERNET - PoE Standard: * IEEE 802.3af Power over Ethernet/PSE * IEEE 802.3at Power over Ethernet Plus/PSE - PoE Power Supply Type: End-span - PoE Power Output: Per port 55V DC, 540mA. max. 30 watts - Power Pin Assignment: 1/2 (+), 3/6 (-) - PoE Power Budget: 120 watts - Max. Number of Class 2 PDs: 8 - Max. Number of Class 3 PDs: 8 - Max. Number of Class 4 PDs: 4 STANDARDS CONFORMANCE - Regulatory Compliance: FCC Part 15 Class A, CE - Standards Compliance: * IEEE 802.3 10BASE-T * IEEE 802.3u 100BASE-TX * IEEE 802.3ab Gigabit 1000BASE-T * IEEE 802.3x Flow control and back pressure * IEEE 802.3af Power over Ethernet * IEEE 802.3at Power over Ethernet Plus * IEEE 802.3az Energy Efficient Ethernet (EEE) ENVIRONMENT - Operating: * Temperature: 0 - 50 degrees C * Relative Humidity: 5 - 95% (non-condensing) - Storage: * Temperature: -10 - 70 degrees C * Relative Humidity: 5 - 95% (non-condensing)
