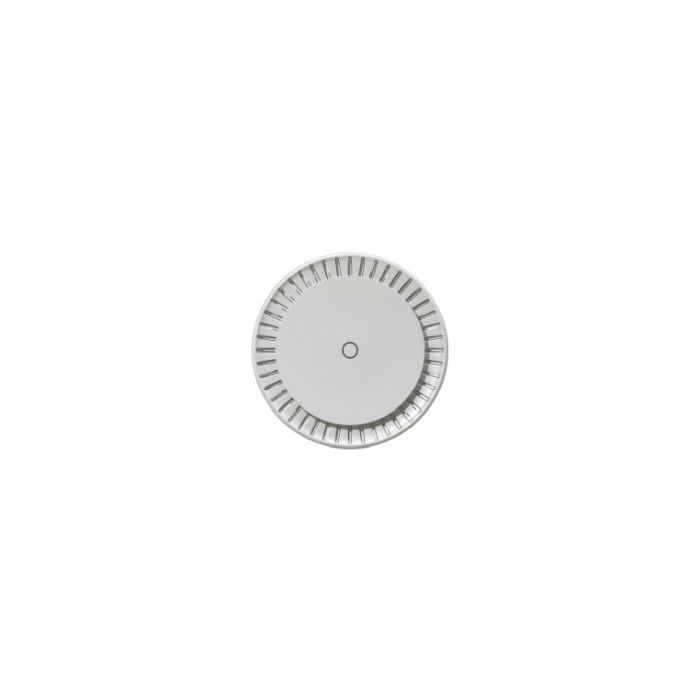

Mikrotik cAP ax (cAPGi-5HaxD2HaxD) Quad core 1.8 GHz CPU, 1GB RAM, 2×G-LAN (1×PoE-out) 2.4GHz 802.11b/g/n/ax, 5GHz 802.11a/n/ac/ax, dual-chain, RouterOS L4, stropni, PSU, PoE injector

- The best-selling ceiling access point is back – stronger than ever! A new generation of wireless greatness for your office, hotel, mall, or any other setups in crowded areas.
Modern quad-core CPU, 1GB of RAM, 2x Gigabit Ethernet ports, PoE, Gen 6 802.11ax wireless, PSU – included!

- When it comes to wireless network in the office, you can’t afford to cut corners and risk inhibiting your team’s performance. You need excellent coverage throughout the premises. You need a device that can handle a large number of clients. You need a reliable, flexible, cost-effective solution: the cAP ax!

- Both open office and cubicle layouts usually encounter a variety of network issues: signal gets absorbed, reflected, it becomes unstable. Mirrors, tinted glass, TVs, metal file cabinets – all sorts of things can get in the way. Our solution is simple, effective, and elegant: let your access point rise above all the obstacles! In other words, a ceiling access point is a great way to prevent signal loss in large, crowded areas with many obstacles.

- There is another benefit to this form-factor: cAP ax remains hidden in plain sight, attracting less unwanted attention than a smoke sensor. Your clients, guests, or colleagues won’t even notice it. But they will definitely notice the blazing-fast wireless connection!

- With the Generation6 802.11ax wireless standard, we’re looking at up to 40% higher speed in the 5 GHz and up to 90% higher speed in the 2.4 GHz spectrum, if we compare it to the previous generations! But what’s more important than speed is the stability. Our latest AX devices can withstand and navigate even the toughest wireless interference scenarios, offering the most stable and uninterrupted signal to date!

- cAP ax features a modern quad-core CPU running at 1.8 GHz, NAND storage, and a gigabyte of RAM. Enough to harvest the full potential of the most powerful networking software on the market – RouterOS v7! Complex firewall rules, IPsec hardware encryption, Wireguard, BGP, advanced routing, or multiple remote work VPN tunnels – cAP ax can do it all!

- Compared to the previous generation, cAP ax offers multiple enhanced authentication types: OWE, WPA3-PSK, WPA3- EAP, and 802.11r roaming.

- cAP ax is also a great way to make your office network installation and maintenance so much easier, as it features PoE-in and PoE-out. That’s right – you can use cAP ax to power other devices, such as network switches, CCTV cameras, or even another cAP ax! And, speaking of easy office networks... Just a few clicks in our latest wifiwave2 CAPsMAN central management system - and you’re done setting up hundreds of cAP ax devices! You can use all sorts of MikroTik devices to run CAPsMAN effortlessly, for example - your main gateway.

Details
- Product code: cAPGi-5HaxD2HaxD
- Architecture: ARM 64bit
- CPU: IPQ-6010
- CPU core count: 4
- CPU nominal frequency: auto (864 - 1800) MHz
- Switch chip model: IPQ-6010
- RouterOS license: 4
- Operating System: RouterOS (v7 only)
- Size of RAM: 1 GB
- Storage size: 128 MB
- Storage type: NAND
- MTBF: Approximately 200000 hours at 25C
- Tested ambient temperature: -40°C to 70°C
- IPsec hardware acceleration : Yes

Wireless capabilities
- Wireless 2.4 GHz Max data rate: 574 Mbit/s
- Wireless 2.4 GHz number of chains: 2
- Wireless 2.4 GHz standards: 802.11b/g/n/ax
- Antenna gain dBi for 2.4 GHz: 6
- Wireless 2.4 GHz chip model: QCN-5022
- Wireless 2.4 GHz generation : Wi-Fi 6
- Wireless 5 GHz Max data rate: 1200 Mbit/s
- Wireless 5 GHz number of chains: 2
- Wireless 5 GHz standards: 802.11a/n/ac/ax
- Antenna gain dBi for 5 GHz: 5.5
- Wireless 5 GHz chip model: QCN-5052
- Wireless 5 GHz generation: Wi-Fi 6
- WiFi speed: AX1800

Ethernet
- 10/100/1000 Ethernet ports: 2
- Number of 1G Ethernet ports with PoE-out: 1

Powering
- Number of DC inputs: 2 (DC jack, PoE-IN)
- DC jack input Voltage: 18-57 V
- Max power consumption: 28.2 W
- Max power consumption without attachments: 9 W
- Cooling type: Passive
- PoE in: 802.3af/at
- PoE in input Voltage: 18-57 V

PoE-out
- PoE-out ports: Ether2
- PoE out: Passive PoE up to 57V
- Max out per port output (input 18-30 V): 600 mA
- Max out per port output (input 30-57 V): 400 mA
- Max total out (A): 600 mA
- Total output current: 0.4
- Total output power: 19.2

Certification & Approvals
- Certification: CE, FCC, IC, EAC, ROHS
- IP: 20

Other
- CPU temperature monitor: Yes
- Mode button: Yes
