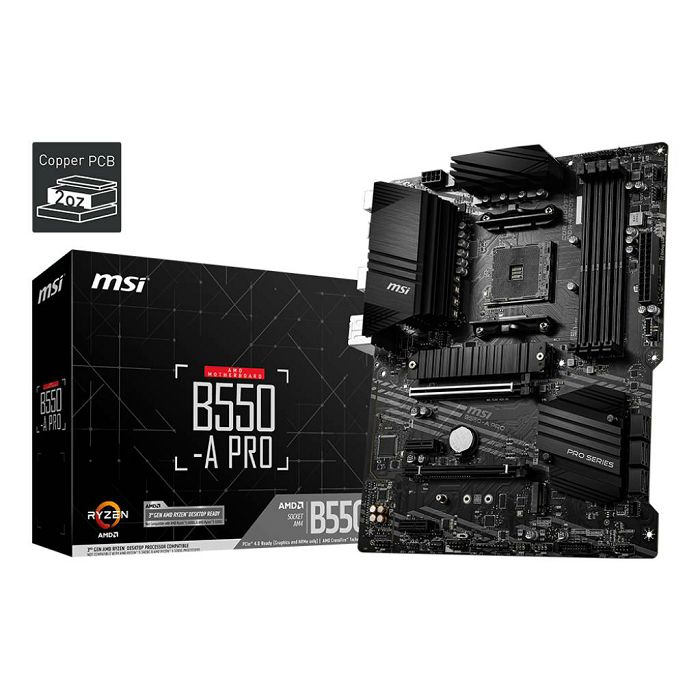

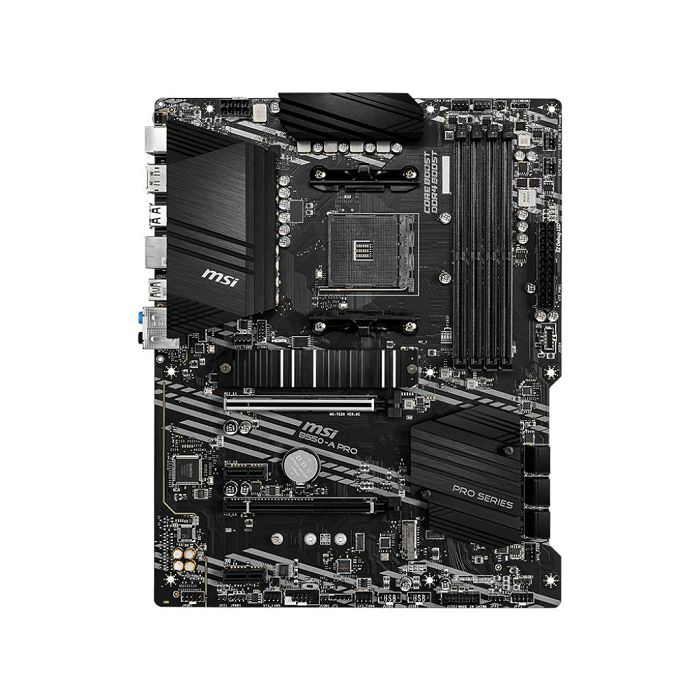

MBO AM4 MSI B550-A PRO 911-7C56-023

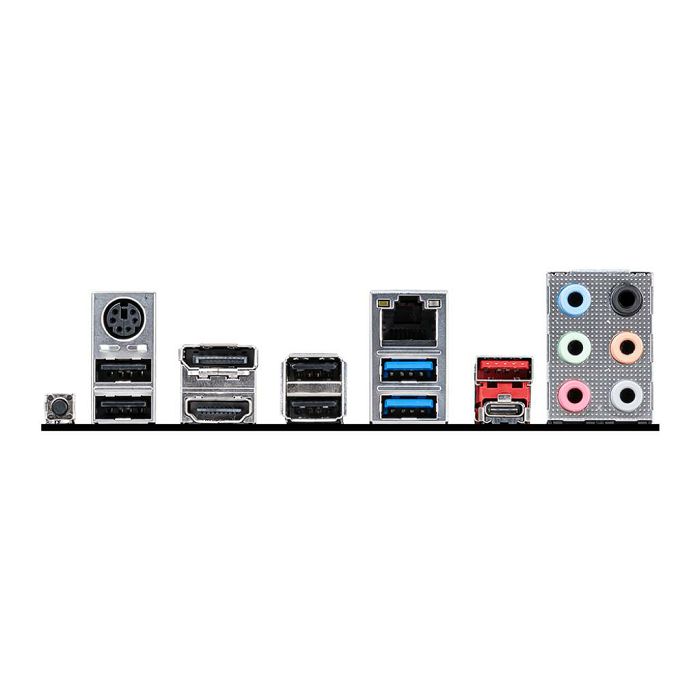

B550-A PRO, AM4, AMD B550, DDR4, Broj utora 4, 1866 - 4400 MHz, PCIe 5.0 x16 1, SATA3 6, RAID 0, RAID 1, 8-kanalni audio, 1x 10/100/1000 Ethernet, Display Port 1, ATX, USB 3.2 4 Osnovne karakteristike: Socket: AM4 CPU: AMD Athlon, AMD Ryzen 3, AMD Ryzen 5, AMD Ryzen 7, AMD Ryzen 9 Chipset (N): AMD B550 BUS[MHz]: 1666 Memorija: DDR4 Broj utora: 4 Max. memorije [GB]: 128 Takt memorije [MHz]: 2133, 2400, 2666, 2800, 3000, 3300, 1866, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400 Utori: AGP 4x/8x: n/a PCI: n/a PCIe 3.0 x16: 0 PCIe x16: n/a PCIe x8: n/a PCIe x4: 1 PCIe x1: 2 PCI-X: n/a PATA: n/a SATA II: n/a SATA3: 6 Ostale karakteristike: RAID: 0, 1 Stražnji panel: Audio: 8-kanalni audio Mreža: 1x 10/100/1000 Ethernet Parallel: n/a Serial: n/a PS/2 mouse: n/a PS/2 keyboard: 1 eSATA: 0 D-sub: n/a DVI: n/a Display Port: 1 HDMI: 1 RJ45: 1 USB 2.0: 4 USB 3.0: 0 Konektori: S/PDIF Out: n/a FireWire: 0 4-pin ATX 12V Power: n/a 8-pin ATX 12V Power: n/a 20-pin ATX Power: n/a 24-pin ATX Power: n/a Front panel audio: n/a Chasis Intrusion: n/a CD Audio In: n/a Chasis Fan Power: 1 CPU Fan Power: 4 Format ploče: ATX WLAN connector: n/a Podrška za integrirani grafičk: N SATA Express: n/a M.2: 2 U.2: n/a USB 3.1: 0 USB 3.1: 1 PCIe 4.0 x16: 1 USB 3.2: 4 PCIe 5.0 x16: 0
