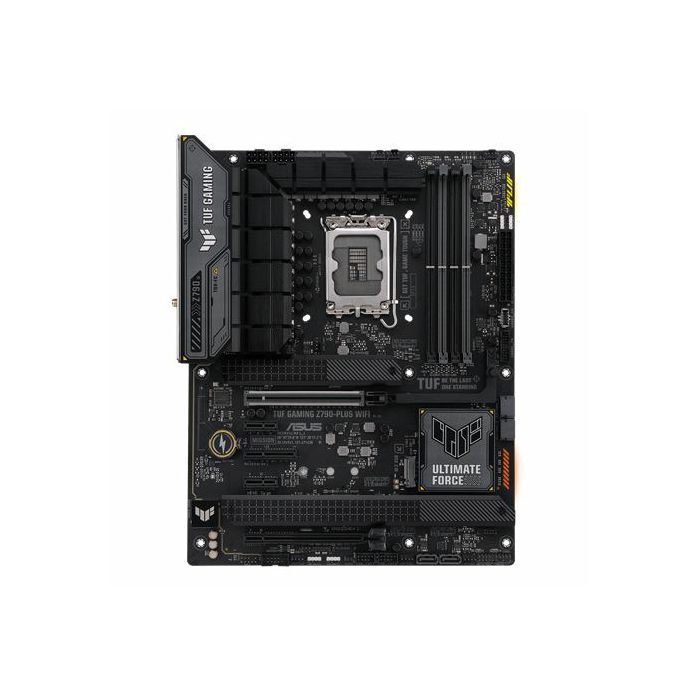

MBO 1700 AS TUF GAMING Z790-PLUS WIFI 90MB1D80-M1EAY0

TUF GAMING Z790-PLUS WIFI, LGA1700, Z790, DDR5, Broj utora 4, 4800 - 7200MHz, PCIe 5.0 x16 1, SATA3 4, RAID 0, RAID 1, RAID 5, 8-kanalni audio, 1x 2.5Gb Ethernet, Display Port 1, ATX, WLAN connector 2, USB 3.2 8 Osnovne karakteristike: Socket: LGA1700 CPU: Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium Chipset (N): Z790 BUS[MHz]: 1000 Memorija: DDR5 Broj utora: 4 Max. memorije [GB]: 128 Takt memorije [MHz]: 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400+ Utori: AGP 4x/8x: n/a PCI: n/a PCIe 3.0 x16: 0 PCIe x16: n/a PCIe x8: n/a PCIe x4: 2 PCIe x1: 2 PCI-X: n/a PATA: n/a SATA II: n/a SATA3: 4 Ostale karakteristike: RAID: 0, 1, 5 Stražnji panel: Audio: 8-kanalni audio Mreža: 1x 2.5Gb Ethernet Parallel: n/a Serial: n/a PS/2 mouse: n/a PS/2 keyboard: n/a D-sub: n/a DVI: n/a Display Port: 1 HDMI: 1 RJ45: 1 USB 2.0: 0 USB 3.0: 0 Konektori: S/PDIF Out: n/a 4-pin ATX 12V Power: n/a 8-pin ATX 12V Power: Y 20-pin ATX Power: n/a 24-pin ATX Power: Y Front panel audio: Y Chasis Intrusion: n/a CD Audio In: n/a Chasis Fan Power: 4 CPU Fan Power: 2 Format ploče: ATX WLAN connector: 2 Podrška za integrirani grafičk: Y SATA Express: n/a M.2: 4 U.2: n/a USB 3.1: 0 USB 3.1: 2 PCIe 4.0 x16: 0 USB 3.2: 8 Wireless: Wi-Fi 6E PCIe 5.0 x16: 1 Bluetooth: Da
