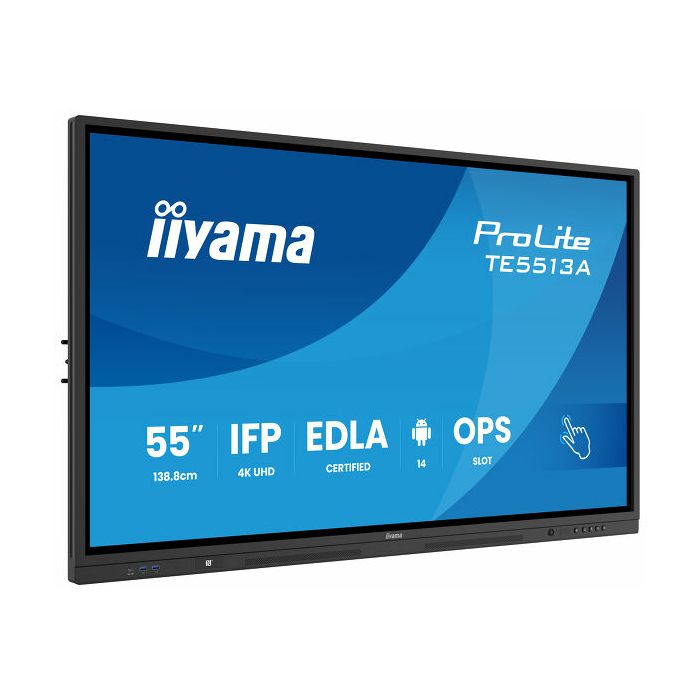

IIYAMA 55" TE5513A-B1AG UDH (3840x2160) IPS, 450 cd 8ms 40, 10pt writing 200Hz Scan rate, iiWare 21E (Android 14 OS) featuring Google EDLA, iiControl (DMS), WhiteBoard, web browser

Design Thin bezel
Diagonal 54.6", 138.8cm
Panel IPS
Touch Glass Anti-Glare glass with Anti-Gloss treatment, Anti-Bacterial coating, Ultra Smooth writing, Zero-Gap Air Bonding
Panel IPS
Native resolution 3840 x 2160 (8.3 megapixel 4K UHD)
Aspect ratio 16:9
Panel brightness 450 cd/m2
Light transmittance 88%
Static contrast 1200:1
Response time (GTG) 8ms
Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support 1.07B 10bit (8bit + Hi-FRC) (NTSC 72%)
Horizontal Sync 30 - 135kHz
Viewable area W x H 1210 x 680mm
Pixel pitch 0.315mm
Bezel colour and finish black, matte

Touch technology PureTouch-IR?
Touch points 40, 10pt writing (HID, only with supported OS, 32pt Touch with Android)
Scan rate 200Hz
Touch accuracy +- 1mm
Touch method stylus, finger, glove (Passive pen, Opaque objects)
Touch interface USB
Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Palm rejection yes

Digital signal input HDMI x2 (2.0, max. 3840x2160 @60Hz, YUV444, ARC on HDMI #1)
DisplayPort x1 (1.2, max. 3840x2160 @60Hz)
USB-C x2 (front: 1x 3.2 (Gen1, 5Gbit, 100W PD), side: 1x 2.0 (480 Mbps, 65W PD), 3840x2160 @60Hz (RGB444), DP 1.2 Alt mode, Data, Touch)
Audio input Mini jack x1 (Microphone)
Monitor control input RS-232c x1 (DSUB 9pin)
Digital signal output HDMI x1 (2.0, max. 3840x2160 @60Hz, YUV444 / RGB444)
Audio output S/PDIF (Optical) x1
Mini jack x1 (Headphone)
Speakers 2 x 20W (Front facing + 20W Subwoofer on the backside)
Monitor control output OPS Slot x1 (Intel OPS 80pin - When installed: USB-C front: 65W, side: 15W)
HDCP 2.2
USB ports x6 (media playback / peripherals / storage – front side: 1x USB-C 3.2 (Gen 1, 5Gbit, 100W PD), 2x 3.2 (Gen 1, 5Gbit), side: 1x USB-C 2.0 (480 Mbps, 65W PD), 1x 2.0 (480Mbps), 1x 3.2 (Gen 1, 5Gbit))
RJ45 (LAN) x2 (IN / OUT, Auto switch for PC & Android, 1000MB)

Integrated software iiWare 21E (Android 14 OS) featuring Google EDLA, iiControl (DMS), WhiteBoard, web browser, file manager, cloud drives and iiShare for wireless connection with Windows/iOS/Android devices
WiFi yes (WiFi-6, Bluetooth 5.0)
Hardware CPU: Quad-core A73*4 (1.4GHz), GPU: G52 MC1, RAM: 8GB, ROM: 128GB
Extra Ambiant light Sensor, PIR Motion Sensor, Slot for optional OPS PC, 4x Touch pen
Max. non-stop operating time 24/7 (While the components are rated for 24/7 operation, we recommend usage not exceeding 18 hours per day to ensure optimal product longevity)
Media playback yes
Glass thickness 3.2mm
Glass hardness 7H
Housing (bezel) metal
OSD key lock yes
