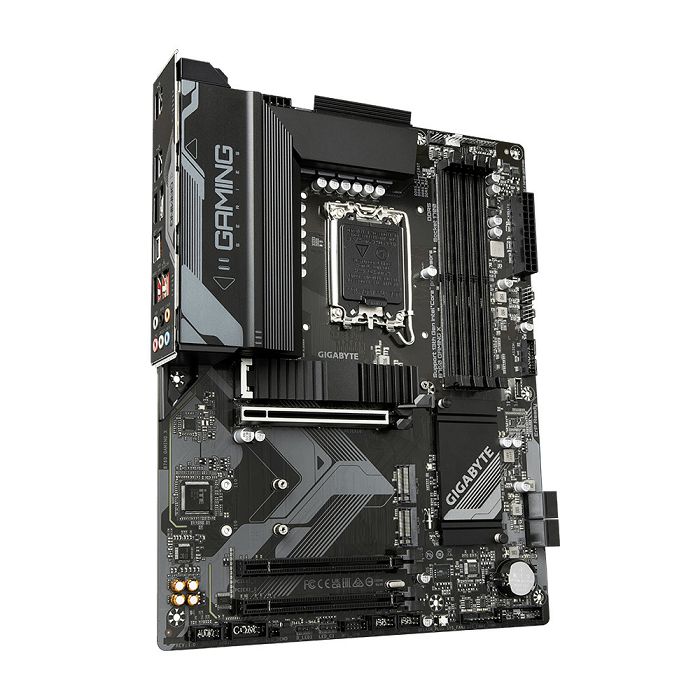

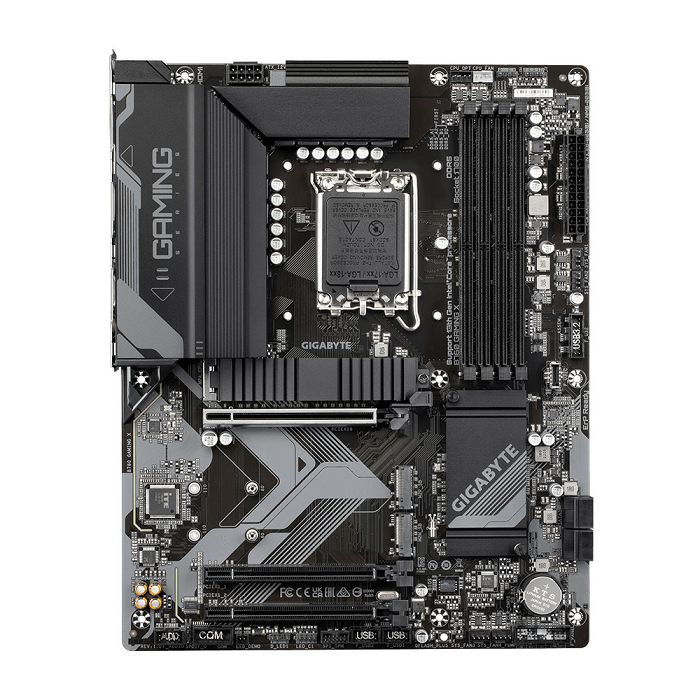

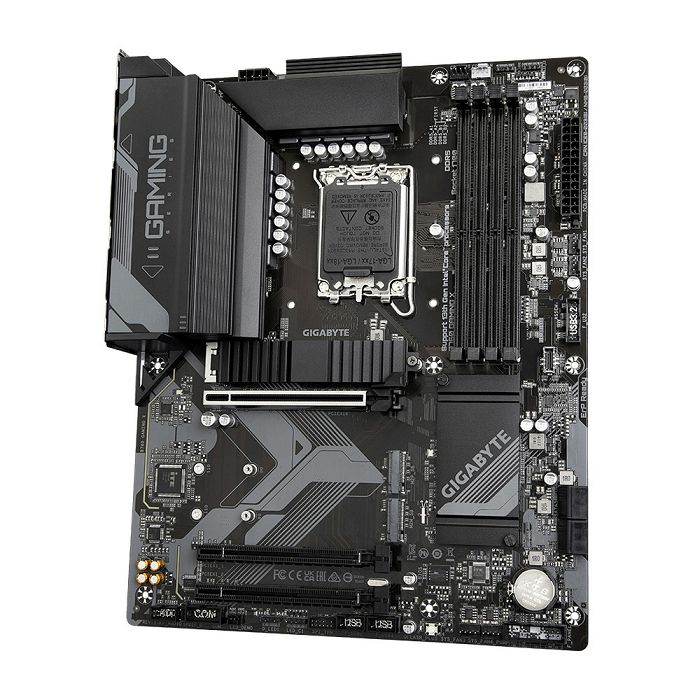

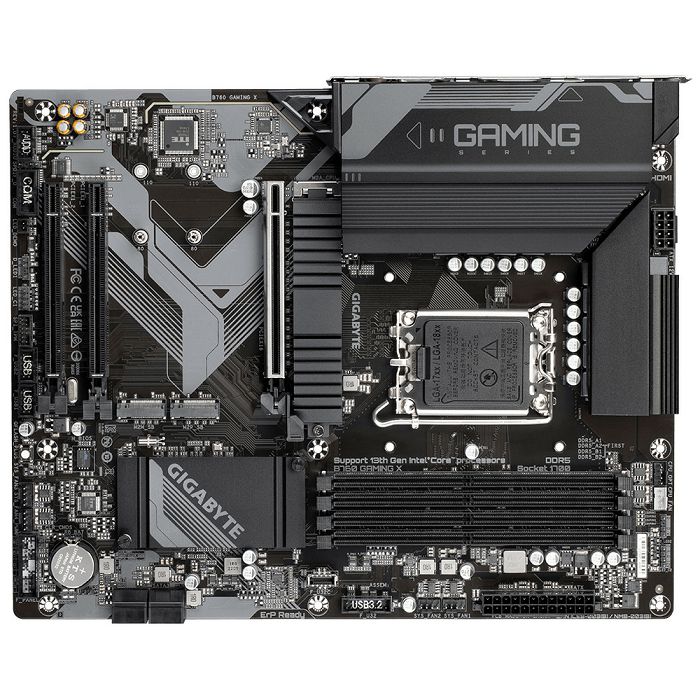

Gigabyte MB B760 GAMING X GEN 5, S.1700, 4xDDR5/5600, PCIe 5.0, 2.5 G-LAN, HDMI/DP, USB-C, ATX

Specifikacije
- Procesor: Intel LGA1700 (12th / 13th / 14th Gen Core™, Pentium® Gold, Celeron®)
- Čipset: Intel B760
- Memorija: 4× DDR5, do 256 GB, dvokanalna, non-ECC, XMP
- Brzina memorije: DDR5 4000 – 7600 MHz (OC)
- Video izlazi: HDMI 2.1, DisplayPort 1.2
- Podrška za više zaslona: do 2
- Zvuk: Realtek HD Audio, do 7.1, S/PDIF Out
- Mreža: Realtek 2.5GbE LAN
- Utori za proširenje: 1× PCIe 5.0 x16 (CPU), 2× PCIe 3.0 x1 (Chipset)
- Pohrana: 3× M.2 (PCIe 4.0 x4/x2), 4× SATA 6 Gb/s
- RAID podrška: RAID 0 / 1 / 5 / 10 (SATA)
- USB priključci: USB Type-C, USB 3.2 Gen 2 / Gen 1, USB 2.0
- Interni konektori: ATX napajanje, ventilatori / pumpe, RGB / ARGB, M.2, TPM, Q-Flash Plus, USB, front panel, audio, S/PDIF, reset, Clear CMOS, serijski port
- BIOS: AMI UEFI, 256 Mbit
- Posebne značajke: Q-Flash, Q-Flash Plus, GIGABYTE Control Center
- Softver: Norton Internet Security (OEM), LAN bandwidth management
- Podrška za operativne sustave: Windows 10 / 11 (64-bit)
- Format: ATX (30.5 × 24.4 cm)
