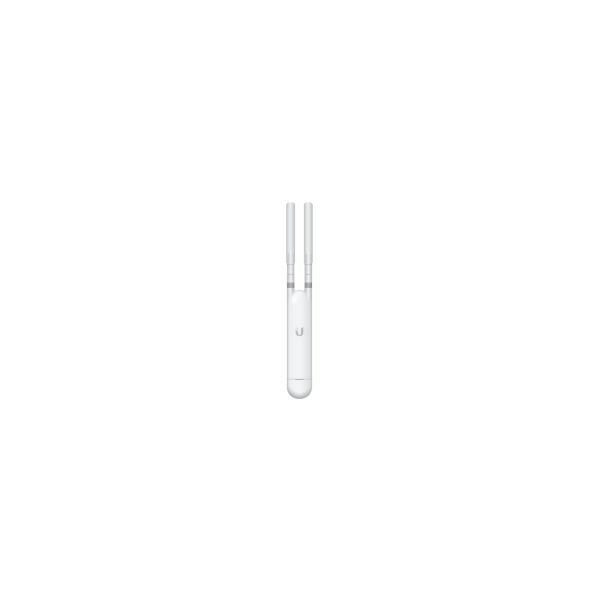

Ubiquiti UniFi UAP AC Mesh

- 802.11AC Indoor/Outdoor Wi-Fi
- Access Point with Plug & Play
- Mesh Technology
- Adjustable dual-band omni-directional antennas and Fast-Mount included for expanded range coverage

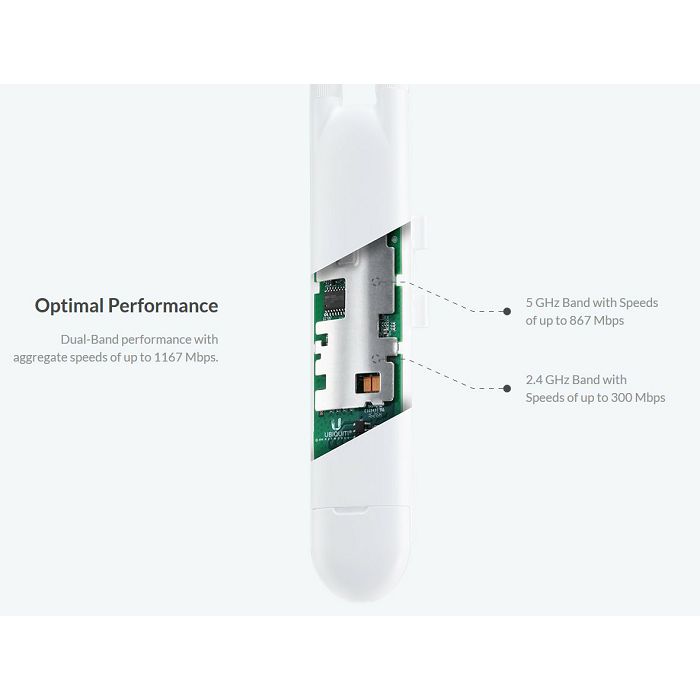

- Dual-Band performance with aggregate speeds of up to 1167 Mbps
- The UniFi AC Mesh base is just slightly larger than a standard pen, making it easy to deploy anywhere
- Multiple Power Options: Power the UniFi AC Mesh with an 802.3af compatible switch, a UniFi PoE Switch, or the included Gigabit PoE adapter

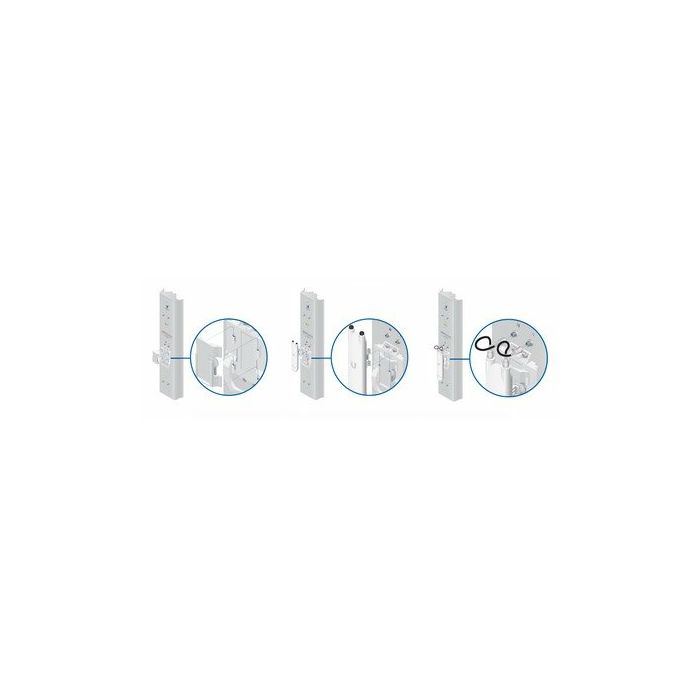

- Mounting Flexibility: The UniFi AC Mesh can be mounted on a pole, wall, or Ubiquiti high-gain antenna

Specification

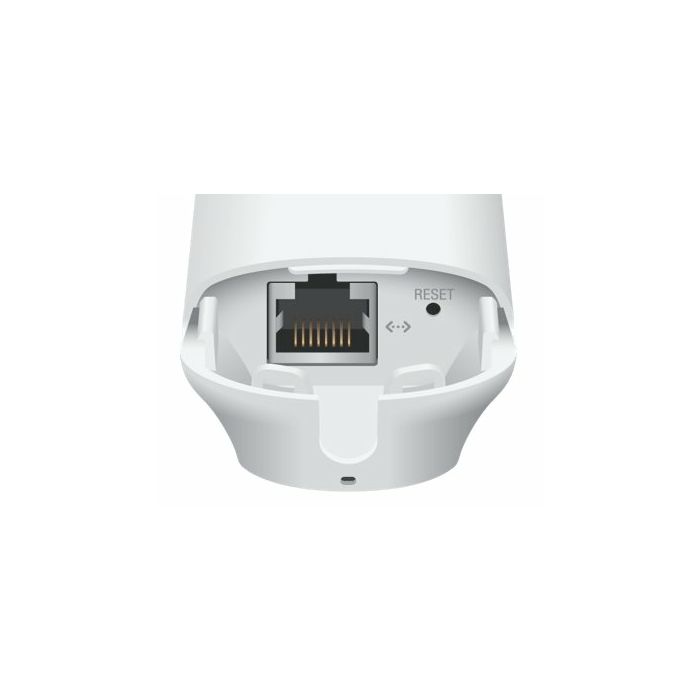

- Networking Interface: 1 10/100/1000 Ethernet Port
- Buttons: Reset
- Power Method:
* 24V Passive PoE (Pairs 4, 5+; 7, 8 Return)
* 802.3af Alternative A (Pairs 1, 2+; 3, 6 Return)
- Power Supply: 24V, 0.5A Gigabit PoE Adapter*
- Power Save: Supported
- Max. Power Consumption: 8.5W
- Ma. TX Power:
* 2.4 GHz: 20 dBm
* 5 GHz: 20 dBm
- Antennas: 2 External Dual-Band Omni Antennas
* 2.4 GHz: 3 dBi
* 5 GHz: 4 dBi
- Wi-Fi Standards: 802.11 a/b/g/n/ac
- Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
- BSSID: Up to Four per Radio

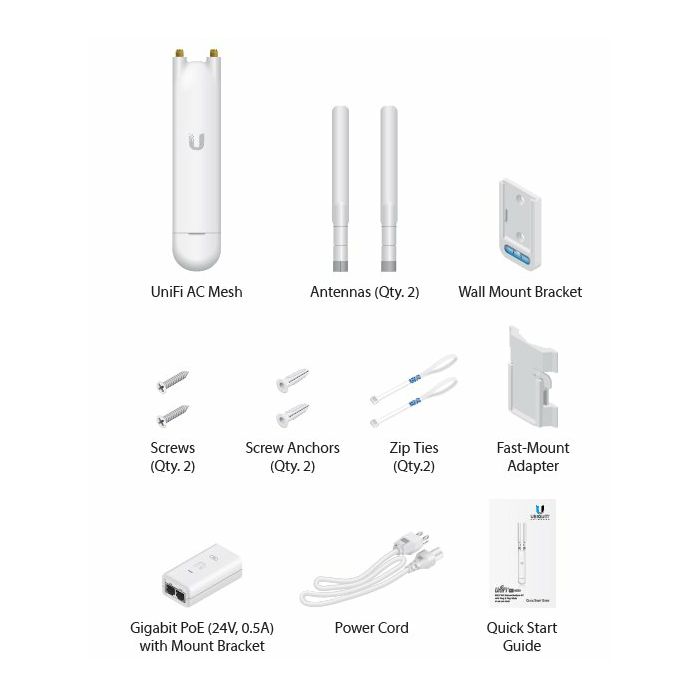

- Mounting: Wall/Pole/Fast-Mount (Kits Included)
- Operating Temperature: -30C to 70C (-22F to 158F)
- Operating Humidity: 5% to 95% Noncondensing
- Dimensions: 353×46×34.4 mm
- Weight: 152 g (with Antennas)

- Advanced Traffic Management:
* VLAN: 802.1Q
* Advanced QoS: Per-User Rate Limiting
* Guest Traffic Isolation: Supported
* WMM: Voice, Video, Best Effort, and Background
* Concurrent Clients: 250+

- Supported Data Rates (Mbps):
* 802.11ac: 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
* 802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
* 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
* 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
* 802.11b: 1, 2, 5.5, 11 Mbps
