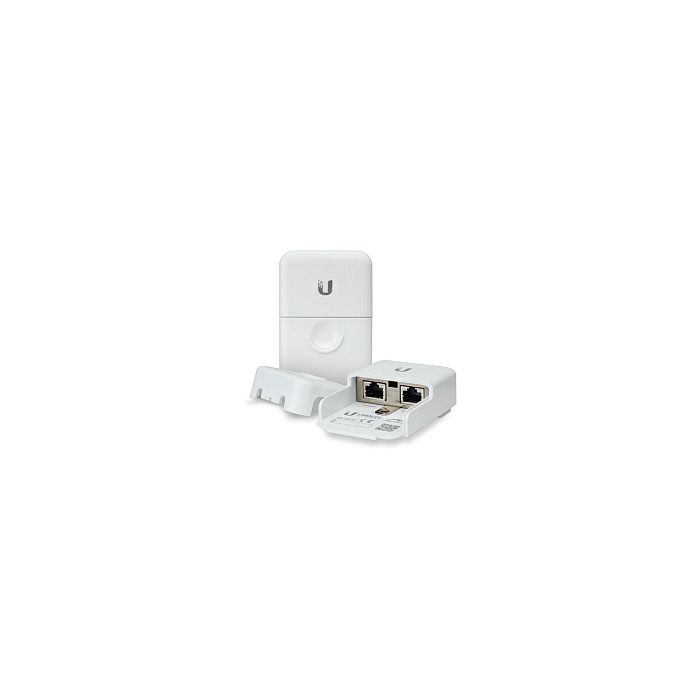

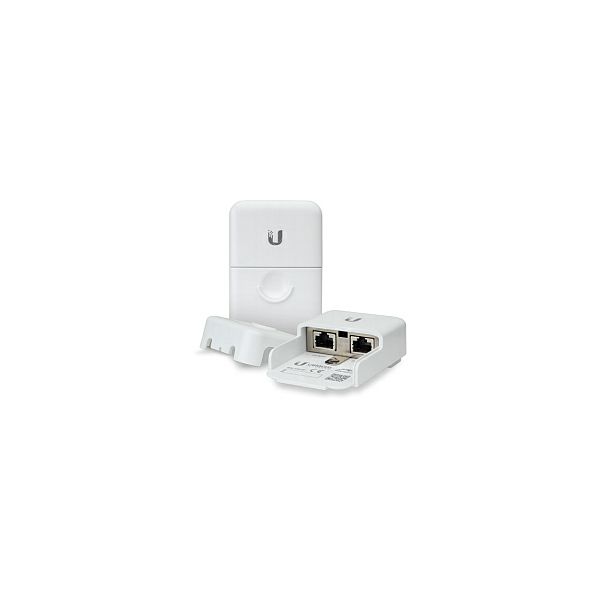

Ubiquiti Ethernet Surge Protector (ETH-SP-G2)

ESD PROTECTION FOR OUTDOOR PoE DEVICES
- Damaging electrostatic discharge attacks and surges are diverted to the ETH-SP and safely discharged into the ground, so network devices are protected

ADDITIONAL ESD PROTECTION
- All Ubiquiti airMAX devices are equipped with built-in ESD protection, so the ETH-SP adds another layer of protection to your outdoor, high-speed network

PLUG and PLAY INSTALLATION
- Connect the ground and Ethernet cables in between your network devices

Specifications
- Interface Connections: 2× RJ45 Female Connectors
- ESD/EMP Protection:
* Absorbing Transient Current with Response to
* Surge Voltage from 100V/s to 1kV/µs
- DC Spark-Over Voltage: 90V @ 100V/s
- Maximum Impulse Spark-over Voltage: 700V @ 1kV/µs
- Discharge Current:
* 5kA (Maximum)
* 0.5kA (Normal)
- Maximum Insulation Resistance: 1G ohm @ 50V
- Maximum Capacitance: 1.0 pF @ 1 MHz
- Data Line Protection: RJ45 10/100/1000 Ethernet
- IEEE 802.3af PoE Support: Yes
- Shock and Vibration Certification: ETSI300-019-1.4 Standard
- Operating Temperature: -30C to 65C (-22F to 149F)
- Operating Humidity: 10% to 90% Noncondensing
