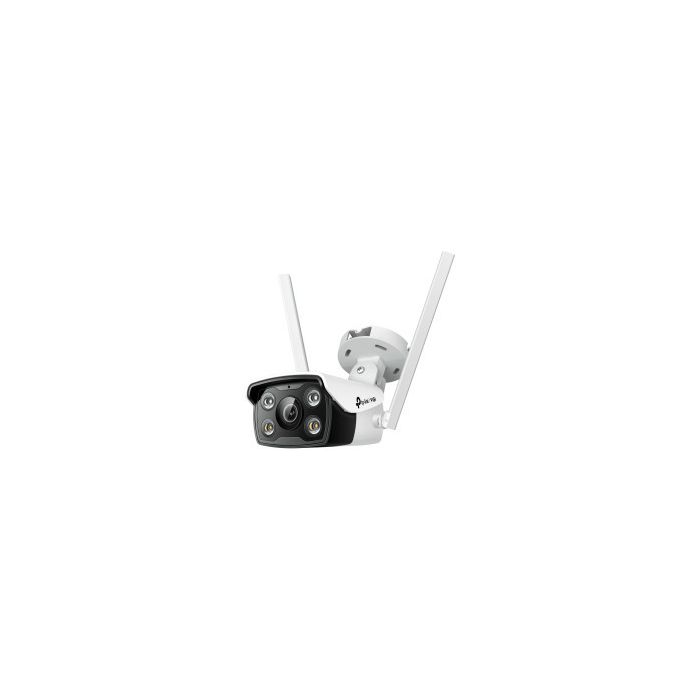

TP-Link VIGI C340 Full color kamera 2K 4MP, H.265+, 6mm leća, RJ45, PoE/12V DC, Night Vision, microSD, dvosmjerni audio, detekcija pokreta, vodootporna IP67, VIGI app

- 4MP High Definition: The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details
- 24h Full-Color: Obtain 24-hour color details, even in pitch-black conditions, via high-sensitivity sensor and included spotlight LEDs
- Wireless Outdoor Connection: Simple and quick deployment with Wi-Fi signals
- Waterproof: Reliable IP66 for stable outdoor performance
- Smart Detection (human detection, motion detection, area intrusion, line-crossing, video tampering): Receive notifications and check feeds when someone crosses a boundary, enters an area youve set, or obstructs the camera
- H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality
- VIGI App: Manage your security from the palm of your hand with the VIGI app

Specifications
CAMERA
- Image Sensor: 1/3” Progressive Scan CMOS
- Shutter Speed: 1/3 to 1/10000 s
- Slow Shutter: Yes
- Aperture
* 2.8 mm: F1.6
* 4 mm: F1.6
* 6 mm: F1.6
- Lens: Fixed focal lens (2.8 mm / 4 mm / 6 mm)
- Lens Mount: M12
- Minimum Illumination: 0 lux with IR/white Light
- Day/Night Mechanism: IR Cut Filter
- Day/Night Switch: Day/Night/Auto/Schedule-Switch
- Digital Noise Reduction: 3D DNR
- WDR: DWDR
- Weatherproof Rating: IP66
- IR Working Distance: 30m
- Illumination Distance: 30 m
- Viewing Angle:
* (2.8mm) Horizontal FOV: 102°, Vertical FOV: 55°, Diagonal FOV: 122°
* (4mm) Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°
* (6mm) Horizontal FOV: 50°, vertical FOV: 27°, Diagonal FOV: 59°

LENS
- Type: Fixed Focal Lens
- Focal Length: 2.8 mm/4 mm/6 mm
- Aperture
* 2.8 mm: F1.6
* 4 mm: F1.6
* 6 mm: F1.6
- FOV:
* 2.8mm: Horizontal FOV: 102°, Vertical FOV: 55°, Diagonal FOV: 122°
* 4mm: Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°
* 6mm: Horizontal FOV: 50°, vertical FOV: 27°, Diagonal FOV: 59°
- Lens Mount: M12
- DORI Distance:

2.8 mm
- Detect: 64 m (209 ft)
- Observe: 27 m (87 ft)
- Recognize: 13 m (42 ft)
- Identify: 6 m (21 ft)

4 mm
- Detect: 80 m (262 ft)
- Observe: 33 m (109 ft)
- Recognize: 16 m (52 ft)
- Identify: 8 m (26 ft)

6 mm
- Detect: 128 m (420 ft)
- Observe: 53 m (175 ft)
- Recognize: 26 m (84 ft)
- Identify: 13 m (42 ft)

- Angle Adjustment (Manual)
* Range Pan: -90° to 90°,
* Tilt: -90° to 90°

ILLUMINATOR
- IR LED Quantity: 2
- Range: 30m
- Wavelength: 850nm
- White LED: Quantity: 2
- Range: 30m
- Illuminator On/Off Control: Auto/Scheduled/Always on/Always off

VIDEO
- Max. Resolution 2560 X 1440

Main Stream
- Frame Rate:
* 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
* 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
- Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
- Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

Sub-Stream
- Frame Rate:
* 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
* 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
- Resolution: 640x480, 352x288, 320x240
- Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

- Bit Rate Control: CBR, VBR
- Video Compression
- Main Stream: H.265+/H.265/H.264+/H.264
- Sub-Stream: H.265/H.264
- H.264 Type: Main Profile/High Profile
- H.264+ Main Stream Supported
- H.265 Type Main Profile
- H.265+ Main Stream Supported
- Video Bit Rate Main Stream: 256 Kbps to 4 Mbps
- Sub-Stream: 64 Kbps to 512 Kbps

- Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)
- Image Enhancement: BLC/3D DNR/HLC/SmartIR
- Wide Dynamic Range: DWDR
- SNR: ? 52 dB
- Image Parameters Switch: Yes
- Privacy Mask: Up to 4 Masks
- ROI: 1 Region
- OSD Setting: Yes

AUDIO
- Audio Communication: Two-Way Audio
- Audio Input: Yes
- Audio Output: Yes
- Audio Compression: Yes
- Audio Sampling Rate: 8KHz
- Environment Noise Filtering: Yes
- Audio Bit Rate: 64 Kbps(G.711 alaw)

NETWORK
- Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
- ONVIF: Yes
- API: ONVIF
- Simultaneous Live View: 3 Main Streams & 3 Sub-Streams
- Client: VIGI App, VIGI Security Manager
- Web Browser
* Google Chrome 57 and above
* Firefox 52 and above
* Safari 11 and above
* Microsoft Edge 91 and above
- Cloud: Yes
- Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
- Network Storage: NAS (NFS, SMB/ CIFS)

ALARM AND EVENT MANAGEMENT
- Smart Event: Area Intrusion Detection, Line-Crossing Detection, People Detection
- Basic Event: Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
- Alarm Linkage: Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
- Linkage Method: N/A
- Output Notification: Message Push

INTERFACES
- Network Interface: 1 RJ45 10/100M Self-Adaptive Ethernet Port
- Audio Input: Built-in Microphone
- Audio Output: Built-in Speaker
- Alarm: N/A
- Reset Button: Yes
- Power: DC Power Port
- Button: Reset Button
- Slot: Micro SD card
- On-board Storage: Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB
- Built-in Microphone: Yes; Records Anything Going on within a 15-ft Radius of the Camera
- Built-in Speaker: Yes
- Audio: N/A

GENERAL
- Operating Temperature: -30–60 °C
- Storage Temperature: -40–60 °C
- Operating Humidity: 95% or Less (Non-Condensing)
- Storage Humidity: 95% or Less (Non-Condensing)
- Weight: 195g
- Package Contents
* VIGI Network Camera
* Quick Start Guide
* Waterproof Cable Attachments
* Mounting Accessories (Screws, Drywall Anchors, Hex Key)
- Dimensions( H X W X D ): 78 × 70 × 174 mm
- Material: Plastic
- General Features: Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
- Power Requirements
* 12V DC ± 5%, 5.5mm Coaxial Power Plug
* PoE (802.3af/at, class 0)
- Net Weight: 0.28 Kg
- Gross Weight: 0.42 Kg
- Power Consumption: 12V DC: Max 7.5W
- PoE: Class 0
- Power Supply:
* 12V DC ± 5%, 5.5mm Coaxial Power Plug
* PoE (802.3af/at, class 0)
- Protection: IP66
Product Dimensions (L x W x H): 78× 174 × 70 mm
Certifications: CE, RCM, BSMI, VCCI, RoHS, NTRA, KC

VIDEO/IMAGE
- Video Compression
* Main stream: H.265+/H.265/H.264+//H.264
* Sub-Stream: H.265/H.264
- Frame Rate & Resolutions
Main Stream
- Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
- Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080

Sub-Stream
- Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
- Resolution: 640x480, 352x288, 320x240

- Video Streaming
* Main Stream
* Sub-Stream
- Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software
- Image Enhancement: BLC/3D DNR/Prevent Overexposure to Infrared Light
- Video Bit Rate
* Main Stream: 256 Kbps to 4 Mbps
* Sub-Stream: 64 Kbps to 512 Kbps

SMART FEATURE-SET
- Smart Event: Area Intrusion Detection, Line-Crossing Detection, Human Detection
- Basic Event: Motion Detection, Camera Tampering Detection, Exception ( illegal login)
- Linkage Method: Trigger Notification: ONVIF, HTTPS
- Region of Interest: 1 Region
