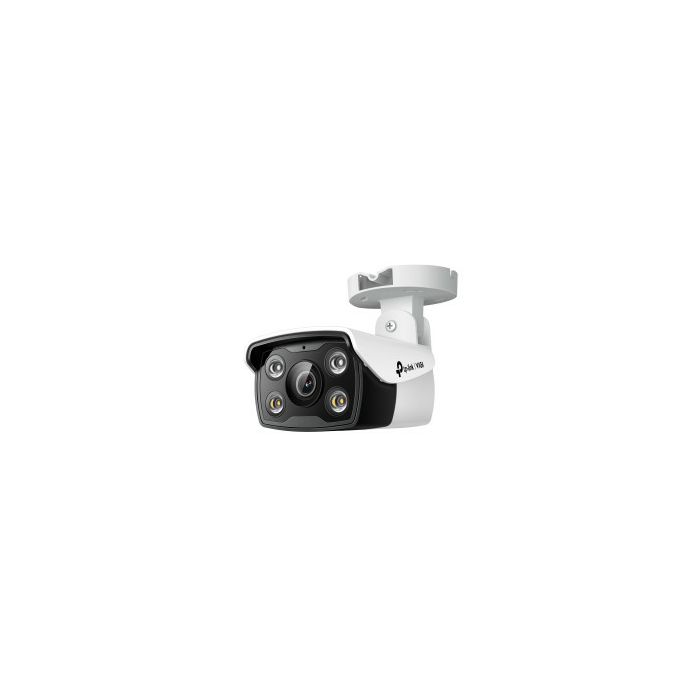

TP-Link VIGI C340 Full color kamera 2K 4MP, H.265+, 4mm leća, RJ45, PoE/12V DC, Night Vision, microSD, dvosmjerni audio, detekcija pokreta, vodootporna IP67, VIGI app

4MP Super-High Definition:
- The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details.

24h Full-Color:
- Obtain 24-hour color details, even in pitch-black conditions, with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.

Human & Vehicle Classification:
- Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.

Smart Detection:
- Receive notifications and check feeds when someone crosses a boundary, enters an area youve set, obstructs the camera, or removes/abandons objects.

Active Defense:
Warn potential intruders instantly with sound and light when abnormal events.

Two-Way Audio:
- Intelligently detect activities, inform you instantly and response automatically by smart detection and two-way audio.

H.265+:
- Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

Smart Video Enhancement:
- VIGIs professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.

IP67 Waterproof:
- Reliable IP67 for stable outdoor performance.

PoE/12V DC:
- Two types of power supply not only give you more convenience but also make your wiring remarkably easy.

Flexible Management and Storage:
- Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger. Local storage is available for each method, as well as onboard storage with SD card slot (up to 256GB).

Specifications
CAMERA
- Image Sensor: 1/3” Progressive Scan CMOS
- Shutter Speed: 1/3 to 1/10000 s
- Slow Shutter: Yes
- Aperture
• 2.8 mm: F1.6
• 4 mm: F1.6
• 6 mm: F1.6
- Lens: Fixed focal lens (2.8 mm / 4 mm / 6 mm)
- Lens Mount: M12
- Minimum Illumination: Color: 0.005 Lux; 0 Lux with IR/white light
- Day/Night Mechanism: IR Cut Filter
- Day/Night Switch. Day/Night/Auto/Schedule-Switch
- Digital Noise Reduction: 3D DNR
- WDR: DWDR
- Weatherproof Rating: IP67
- IR Working Distance: 30m
- Viewing Angle
• 2.8mm: Horizontal FOV: 96.1°, Vertical FOV: 52°, Diagonal FOV: 113.6°
• 4mm: Horizontal FOV: 80°, Vertical FOV: 43.2°, Diagonal FOV: 94.2°
• 6mm: Horizontal FOV: 49.3°, Vertical FOV: 26.8°, Diagonal FOV: 57.4°

LENS
- Type: Fixed Focal Lens
- Focal Length: 2.8 mm/4 mm/6 mm
- Aperture
• 2.8 mm: F1.6
• 4 mm: F1.6
• 6 mm: F1.6
- FOV
• 2.8mm: Horizontal FOV: 96.1°, Vertical FOV: 52°, Diagonal FOV: 113.6°
• 4mm: Horizontal FOV: 80°, Vertical FOV: 43.2°, Diagonal FOV: 94.2°
• 6mm: Horizontal FOV: 49.3°, Vertical FOV: 26.8°, Diagonal FOV: 57.4°
- Lens Mount: M12
- DORI Distance:
2.8 mm
• Detect: 64 m (209 ft)
• Observe: 27 m (87 ft)
• Recognize: 13 m (42 ft)
• Identify: 6 m (21 ft)
4 mm
• Detect: 80 m (262 ft)
• Observe: 33 m (109 ft)
• Recognize: 16 m (52 ft)
• Identify: 8 m (26 ft)
6 mm
• Detect: 128 m (420 ft)
• Observe: 53 m (175 ft)
• Recognize: 26 m (84 ft)
• Identify: 13 m (42 ft)

ANGLE ADJUSTMENT (MANUAL)
- Range
• Pan: -90° to 90°,
• Tilt: -90° to 90°

ILLUMINATOR
- IR LED
• Quantity: 2
• Range: 30m
• Wavelength: 850nm
- White LED
• Quantity: 2
• Range: 30m
- Illuminator On/Off Control: Auto/Scheduled/Always on/Always off

VIDEO
- Max. Resolution: 2560 X 1440
- Main Stream
Frame Rate:
• 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
• 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
* Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
- Sub-Stream
Frame Rate:
• 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
• 640x480, 352x288, 320x240
*Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
- Bit Rate Control: CBR, VBR
- Video Compression
• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
- H.264 Type: Main Profile/High Profile
- H.264+: Main Stream Supported
- H.265 Type: Main Profile
- H.265+: Main Stream Supported
- Video Bit Rate: Main Stream: 256 Kbps to 4 Mbps
- Sub-Stream: 64 Kbps to 512 Kbps

- Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)
- Image Enhancement: BLC/3D DNR/HLC/SmartIR
- Wide Dynamic Range: DWDR
- SNR: ? 52 dB
- Image Parameters Switch: Yes
- Privacy Mask: Up to 4 Masks
- ROI: 1 Region
- OSD Setting: Yes

AUDIO
- Audio Communication: Two-Way Audio
- Audio Input: Yes
- Audio Output: Yes
- Audio Compression: Yes
- Audio Sampling Rate: 8KHz
- Environment Noise Filtering: Yes
- Audio Bit Rate: 64 Kbps(G.711 alaw)

NETWORK
- Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
- ONVIF: Yes
- API: Open Network Video Interface (Profile S)
- Simultaneous Live View: Up to 6 Channels
- Client: VIGI App, VIGI Security Manager, VIGI NVR, Web
- Web Browser
• Google Chrome 57 and above
• Firefox 52 and above
• Safari 11 and above
• Microsoft Edge 91 and above
- Cloud: Yes
- Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
- Network Storage: NAS (NFS, SMB/ CIFS)

ALARM AND EVENT MANAGEMENT
- Smart Event: Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
- Basic Event: Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
- Alarm Linkage: Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
- Output Notification: Message Push

DEEP LEARNING FUNCTION
- Multi-Target-Type Detection
• Supports Simultaneous Detection and Capture of
• Human Body and Vehicle
- Perimeter Protection
• Motion, Line Crossing, Intrusion, Region Entering,
• Region Exiting.
• Support Alarm Triggering by Specified Target
• Types (Human and Vehicle)

INTERFACES
- Network Interface: 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
- Reset Button: Yes
- Power: DC Power Port
- Button: Reset Button
- On-board Storage
• Built-In Memory Card Slot, Support MicroSD Card,
• Up to 256 GB
- Built-in Microphone: Yes
- Built-in Speaker: Yes

GENERAL
- Operating Temperature: -30–60 °C
- Storage Temperature: -40–60 °C
- Operating Humidity: 95% or Less (Non-Condensing)
- Storage Humidity: 95% or Less (Non-Condensing)
- Weight: 195g
- Package Contents
• VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories
- Dimensions( H X W X D ): 78 × 70 × 174 mm
- Material: Plastic
- General Features: Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
- Net Weight: 0.28 Kg
- Gross Weight: 0.42 Kg
- Power Consumption: 12V DC: Max 7.5W
- PoE: Class 0
- Power Supply
• 12V DC ± 5%, 5.5mm Coaxial Power Plug
• PoE (802.3af/at, class 0)
- Protection: IP67
- Product Dimensions (L x W x H): 78× 174 × 70 mm
- Certifications: CE, RCM, BSMI, VCCI, RoHS, NTRA, KC

VIDEO/IMAGE
- Video Compression
• Main stream: H.265+/H.265/H.264+//H.264
• Sub-Stream: H.265/H.264
- H.264 Type: Main Profile/High Profile
- H.264+: Main Stream Supported
- H.265 Type: Main Profile
- H.265+: Main Stream Supported
- Frame Rate & Resolutions
Main Stream
• Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
Sub-Stream
• Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution: 640x480, 352x288, 320x240
- Max. Resolution: 2560 X 1440
- Video Streaming:
• Main Stream
• Sub-Stream
- Image Settings:
• Mirror, Brightness, Contrast, Saturation, Sharpness,
• Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°)
- Image Enhancement: BLC/3D DNR/HLC/SmartIR
- Video Bit Rate
• Main Stream: 256 Kbps to 4 Mbps
• Sub-Stream: 64 Kbps to 512 Kbps
- Day/Night Switch: Day/Night/Auto/Schedule-Switch
- Privacy Mask: Up to 4 Masks

SMART FEATURE-SET
- Input Trigger
• Motion Detection, Video Tampering Detection, Exception ( Illegal Login), Human & Vehicle Classification,
• Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection,
• Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
- Smart Event
• Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection,
• Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
- Basic Event: Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
- Alarm Linkage: Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
- Output Notification: Message Push
