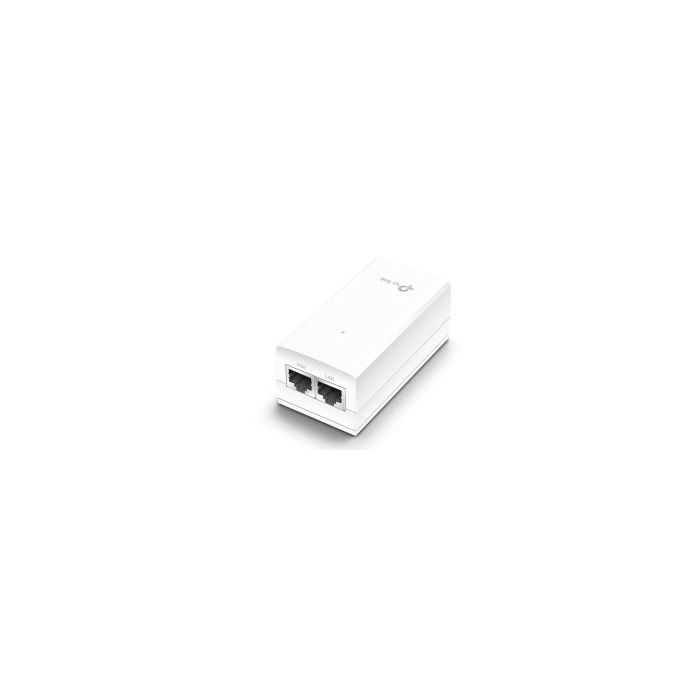

TP-Link Gigabit Passive PoE adapter 24VDCr,2 x 10/100/1000Mbps RJ45 Port, Plug & Play

Passive PoE Adapter
- Powers TP-Link products that support 24V passive PoE

Power Your Devices
- Use the passive PoE adapter TL-POE2412G to simultaneously supply power and transmit data to a passive PoE device.

Convenient Wall-Mounting Design
- TL-POE2412G offers a convenient wall-mounting brackets to be easily installed on a wall.

Compatible Devices
- TL-POE2412G is the recommended power supply for compatible devices.

Features
- Gigabit Ethernet ports
- 24VDC passive PoE supported
- Auto-adjusted power depends on requirements
- Convenient wall-mounting design
- Plug-and-Play, no configuration required

Specifications
HARDWARE FEATURES
- Interface
• 2 x 10/100/1000Mbps RJ45 Port
• AUTO Negotiation/AUTO MDI/MDIX
• 1 100~240V / 50~60Hz AC Power Input Port
- Network Media
• 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
• EIA/TIA-568 100? STP (Max 100m)
•100BASE-TX: UTP category 5, 5e cable (Max 100m)
• EIA/TIA-568 100? STP (Max 100m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
- Power Supply: 12W (Max. 24VDC)
- LED Indicator: Power (PWR)
- Dimensions ( W x D x H ): 3.4 x 1.7 x 1.4 in.( 85.8mm x 43.9mm x 35mm)

OTHERS
- Certification: FCC, RoHS
- Package Contents
• 24V, 12W Passive PoE Adapter TL-POE2412G
• Power Cord
• Wall Mounting Kits
- Environment:
• Operating Temperature: 0?~40? (32?~104?)
• Storage Temperature: -40?~70? (-40?~158?)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
