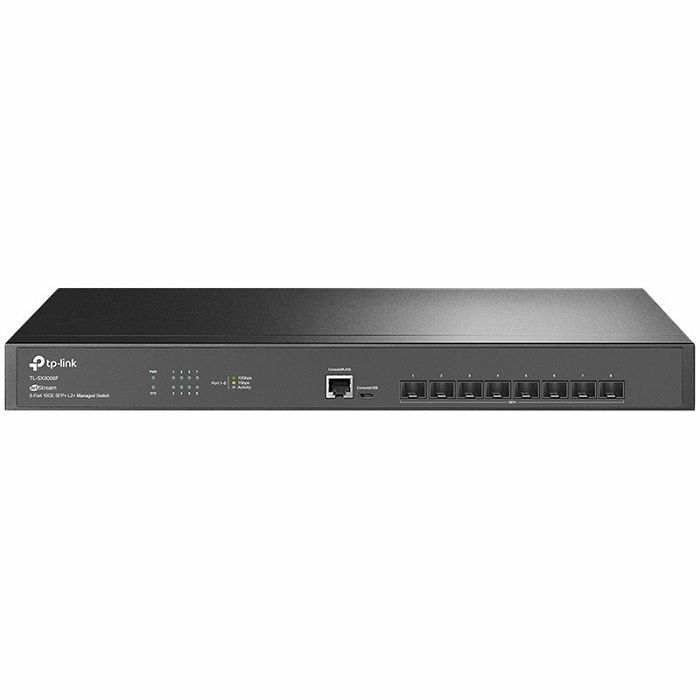

TP-Link 8-Port Omada JetStream Managed preklopnik (Switch) 10GE SFP+ L2+, 8×10G SFP+, RJ45/Micro-USB Console Port, 1U 19" Rack-mount

- 10G Lightning-Fast Connections: 8× 10 Gbps SFP+ Ports enable high-bandwidth connectivity and non-blocking 160 Gbps switching capacity. Learn More about TP-Link 10G/Multi-Gigabit Switching Solutions - Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring. - Centralized Management: Easy and convenient management with cloud access and Omada app. - Static Routing: Route internal traffic for the efficient use of network resources. - Robust Security Strategies: Keep your data safe with systems including IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, and Radius Authentication - Voice and Video Application Optimization: L2/L3/L4 QoS and IGMP snooping. - Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities Specifications HARDWARE FEATURES - Interface: * 8× 10GE SFP+ Slots * 1× RJ45 Console Port * 1× Micro-USB Console Port - Fan Quantity: Fanless - Power Supply: 100-240 V AC~50/60 Hz - Dimensions ( W x D x H ): 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) - Mounting: Rack Mountable - Max Power Consumption: 15.46 W (220 V / 50 Hz) - Max Heat Dissipation: 52.75 BTU/hr (220 V / 50 Hz) PERFORMANCE - Switching Capacity: 160 Gbps - Packet Forwarding Rate: 119.04 Mpps - MAC Address Table: 32 K - Packet Buffer Memory: 16 Mbit - Jumbo Frame: 9 KB SOFTWARE FEATURES Quality of Service: * 8 priority queues * 802.1p CoS/DSCP priority * Queue scheduling - SP (Strict Priority) - WRR (Weighted Round Robin) - SP+WRR * Bandwidth Control - Port/Flow based Rating Limiting * Smoother Performance * Action for Flows - Mirror (to supported interface) - Redirect (to supported interface) - Rate Limit - QoS Remark L2 and L2+ Features * Link Aggregation - static link aggregation - 802.3ad LACP - Up to 8 aggregation groups, containing 8 ports per group * Spanning Tree Protocol - 802.1d STP - 802.1w RSTP - 802.1s MSTP - STP Security: TC Protect, BPDU Filter, Root Protect * Loopback Detection - Port based - VLAN based * Flow Control - 802.3x Flow Control - HOL Blocking Prevention * Mirroring - Port Mirroring - CPU Mirroring - One-to-One - Many-to-One - Tx/Rx/Both L2 Multicast * IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave - IGMP Snooping Querier - IGMP Authentication * IGMP Authentication * MLD Snooping - MLD v1/v2 Snooping - Fast Leave - MLD Snooping Querier - Static Group Config - Limited IP Multicast * MVR * Multicast Filtering: 256 profiles and 16 entries per profile VLAN * VLAN Group - Max 4K VLAN Groups * 802.1Q Tagged VLAN * MAC VLAN: 30 Entries * Protocol VLAN: Protocol Template 16, Protocol VLAN 16 * Private VLAN * GVRP * VLAN VPN (QinQ) - Port-Based QinQ - Selective QinQ * Voice VLAN Access Control List * Time-based ACL * MAC ACL - Source MAC - Destination MAC - VLAN ID - User Priority - Ether Type * IP ACL -Source IP - Destination IP - Fragment - IP Protocol - TCP Flag - TCP/UDP Port - DSCP/IP TOS - User Priority * Combined ACL * Packet Content ACL * IPv6 ACL * Policy - Mirroring - Redirect - Rate Limit - QoS Remark * ACL apply to Port/VLAN Security * IP-MAC-Port Binding - 512 Entries - DHCP Snooping - ARP Inspection - IPv4 Source Guard: 100 Entries * IPv6-MAC-Port Binding - 512 Entries - DHCPv6 Snooping - ND Detection - IPv6 Source Guard: 100 Entries * DoS Defend * Static/Dynamic Port Security - Up to 64 MAC addresses per port * Broadcast/Multicast/Unicast Storm Control - kbps/ratio control mode * 802.1X - Port base authentication - Mac base authentication - VLAN Assignment - MAB - Guest VLAN - Support Radius authentication andaccountability * AAA (including TACACS+) * Port Isolation * Secure web management through HTTPS with SSLv3/TLS 1.2 * Secure Command Line Interface (CLI) management with SSHv1/SSHv2 * IP/Port/MAC based access control IPv6 * IPv6 Dual IPv4/IPv6 * Multicast Listener Discovery (MLD) Snooping * IPv6 ACL * IPv6 Interface * Static IPv6 Routing * IPv6 neighbor discovery (ND) * Path maximum transmission unit (MTU) discovery * Internet Control Message Protocol (ICMP) version 6 * TCPv6/UDPv6 * IPv6 applications - DHCPv6 Client - Ping6 - Tracert6 - Telnet (v6) - IPv6 SNMP - IPv6 SSH - IPv6 SSL - Http/Https - IPv6 TFTP L3 Features * 16 IPv4/IPv6 Interfaces * Static Routing - 48 static routes * Static ARP - 128 Static Entries * Proxy ARP * Gratuitous ARP * DHCP Server * DHCP Relay - DHCP Interface Relay - DHCP VLAN Relay * DHCP L2 Relay Advanced Features * Automatic Device Discovery * Batch Configuration * Batch Firmware Upgrading * Intelligent Network Monitoring * Abnormal Event Warnings * Unified Configuration * Reboot Schedule MIBs * MIB II (RFC1213) * Interface MIB (RFC2233) * Ethernet Interface MIB (RFC1643) * Bridge MIB (RFC1493) * P/Q-Bridge MIB (RFC2674) * RMON MIB (RFC2819) * RMON2 MIB (RFC2021) * Radius Accounting Client MIB (RFC2620) * Radius Authentication Client MIB (RFC2618) * Remote Ping, Traceroute MIB (RFC2925) * Support TP-Link private MIB MANAGEMENT - Omada App: Yes/ Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller - Centralized Management: * Omada Cloud-Based Controller * Omada Hardware Controller (OC300) * Omada Hardware Controller (OC200) * Omada Software Controller - Cloud Access: Yes/ Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller - Zero-Touch Provisioning: Yes/ Requiring the use of Omada Cloud-Based Controller. - Management Features: * Web-based GUI * Command Line Interface (CLI) through the console port, telnet * SNMP v1/v2c/v3 * Trap/Inform * RMON (1,2,3,9 groups) * SDM Template * DHCP/BOOTP Client * 802.1ab LLDP/LLDP-MED * DHCP AutoInstall * Dual Image, Dual Configuration * CPU Monitoring * Cable Diagnostics * EEE * Password Recovery * SNTP OTHERS - Certification:CE, FCC, RoHS - Package Contents: * TL-SX3008F Switch * Power Cord * Quick Installation Guide * Rackmount Kit * Rubber Feet * System Log - System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux - Environment: * Operating Temperature: 0–45 ? (32–113 ?); * Storage Temperature: -40–70 ? (-40–158 ?) * Operating Humidity: 10–90% RH non-condensing * Storage Humidity: 5–90% RH non-condensing
