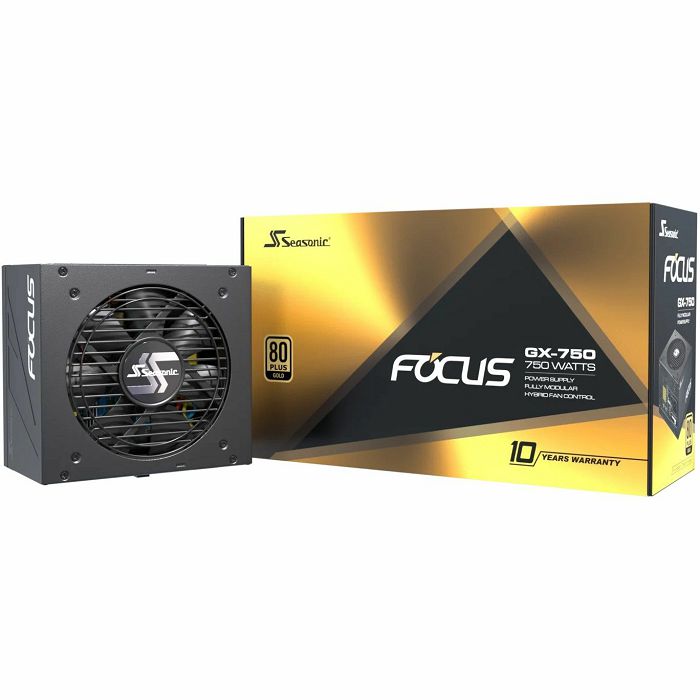

Seasonic FOCUS GX-750 750W ATX 3.1 80+ Gold

Total power The total power that is needed by the device, or the total power produced by the device. 750 W AC input voltage The voltage of the AC electricity that is inputted into the product. 100 - 240 V AC input frequency 50/60 Hz Input current 10 - 5 A Combined power (+3.3V) 100 W Combined power (+12V) 744 W Combined power (-12V) 3.6 W Combined power (+5Vsb) 15 W Max output current (+3.3V) 20 A Max output current (+12V) 62 A Max output current (+5V) 20 A Max output current (-12V) 0.3 A Max output current (+5Vsb) 3 A Power protection features Features that protect the device against power problems e.g. overload. Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage Ports & interfaces Motherboard power connector The way in which the motherboard is connected to the power supply. 20+4 pin ATX Motherboard power cable length 61 cm SATA power cable length 450, 810, 860 mm Peripheral (Molex) power cable length 470, 690 mm PCI Express power connectors (6+2 pin) 2 PCI Express power cable length 75 cm CPU power connector (4+4 pin) CPU power cable length 65 cm PCI Express connector Cabling type Fully-Modular Performance 80 PLUS certification 80 PLUS Gold Performance Purpose What the product is used for. PC Power supply unit (PSU) form factor ATX ATX version ATX (Advanced Technology eXtended) is a motherboard form factor specification developed by Intel in 1995. The specification defines the key mechanical dimensions, mounting point, I/O panel, power and connector interfaces between a computer case, a motherboard and a power supply. There are many versions of ATX including ATX12V 1.x and ATX12V v2.3. 3.0 Silent mode Bearing technology FDB Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. 100000 h Design Product colour The colour e.g. red, blue, green, black, white. Black Cooling type The method used to cool the device or to cool the air around the device. Active Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. 12 cm Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). 1 fan(s) On/off switch The button which is pressed to switch the device on or off. Operational conditions Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. 0 - 50 °C Packaging content Cables included AC, CPU, PCIe, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA Cable tie(s) included Certificates Compliance certificates BSMI, CB, CCC, CE, EAC, REACH, RoHS, cTUVus, WEEE Certification cTUVus, TUV, CB, CCC, BSMI, EAC, CE, Energy Star, RoHS, WEEE, ErP Lot 6, REACH Weight & dimensions Width The measurement or extent of something from side to side. 150 mm Depth The distance from the front to the back of something. 140 mm Height The measurement of the product from head to foot or from base to top. 86 mm Technical details Sustainability compliance Sustainability certificates ENERGY STAR, ErP
