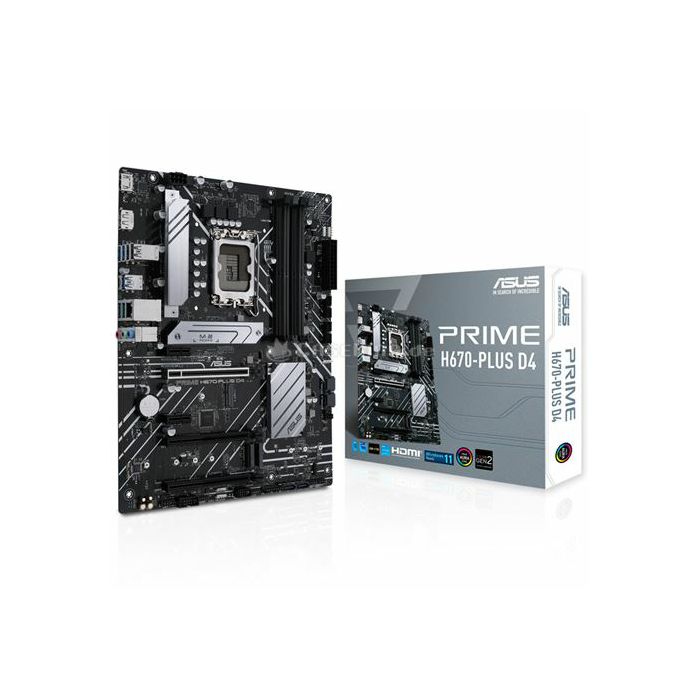

MBO 1700 AS PRIME H670-PLUS D4 90MB18W0-M0EAY0

PRIME H670-PLUS D4, LGA 1700, Intel H670, DDR4, Broj utora 4, 128 GB, Takt 2133 - 5066 MHz, PCIe 4.0 x16 1, PCIe x4 2, PCIe x1 2, SATA3 4, 8-kanalni audio, DP 1, HDMI 1, RJ45 1, M.2 3, USB 3.2 6 Osnovne karakteristike: Socket: LGA1700 CPU: Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium Chipset (N): Intel H670 BUS[MHz]: 1000 Memorija: DDR4 Broj utora: 4 Max. memorije [GB]: 128 Takt memorije [MHz]: 2133, 2400, 2666, 2933, 3200, 3333, 3466, 3600, 3733, 4000 Utori: AGP 4x/8x: n/a PCI: n/a PCIe 3.0 x16: 1 PCIe x16: n/a PCIe x8: n/a PCIe x4: n/a PCIe x1: 2 PCI-X: n/a PATA: n/a SATA II: n/a SATA3: 4 Ostale karakteristike: RAID: 0, 1, 5 Stražnji panel: Audio: 8-kanalni audio Mreža: 1x 10/100/1000 Ethernet Parallel: n/a Serial: n/a PS/2 mouse: n/a PS/2 keyboard: n/a D-sub: n/a DVI: n/a Display Port: 1 HDMI: 1 RJ45: 1 USB 2.0: 2 USB 3.0: 0 Konektori: S/PDIF Out: n/a 4-pin ATX 12V Power: n/a 8-pin ATX 12V Power: Y 20-pin ATX Power: n/a 24-pin ATX Power: Y Front panel audio: Y Chasis Intrusion: n/a CD Audio In: n/a Chasis Fan Power: 3 CPU Fan Power: 1 Format ploče: ATX WLAN connector: n/a Podrška za integrirani grafičk: Y SATA Express: n/a M.2: 3 U.2: n/a USB 3.1: 0 USB 3.1: 2 PCIe 4.0 x16: 2 USB 3.2: 6 PCIe 5.0 x16: 0
