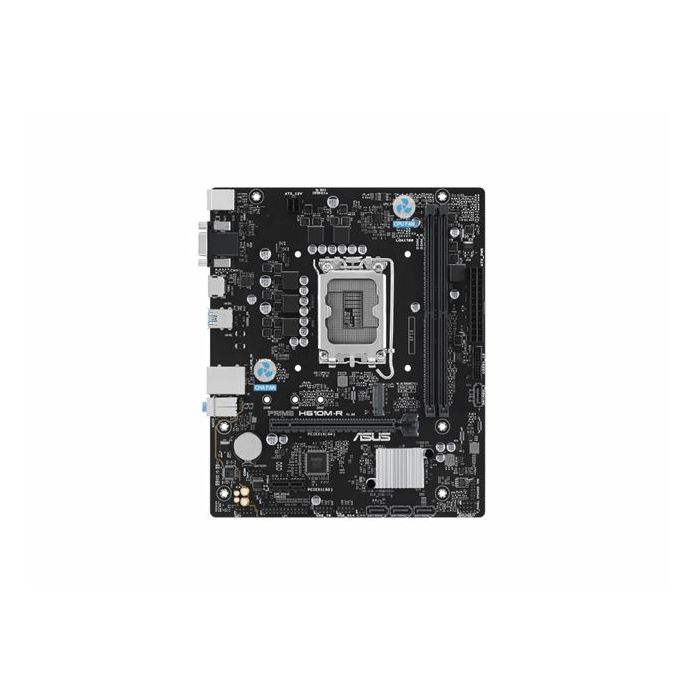

MBO 1700 AS PRIME H610M-R-SI 90MB1GL0-M0ECY0

PRIME H610M-R D4-SI, LGA1700, Intel H610, DDR4, Broj utora 2, 2133 -3200MHz, SATA3 4, 8-kanalni audio, 1x 10/100/1000 Ethernet, mATX, PCIe4.0 x16 1, USB 3.2 2 Osnovne karakteristike: Socket: LGA1700 CPU: Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium Chipset (N): Intel H610 BUS[MHz]: 1000 Memorija: DDR5 Broj utora: 2 Max. memorije [GB]: 96 Takt memorije [MHz]: 4800, 5000, 5200, 5400, 5600 Utori: AGP 4x/8x: n/a PCI: n/a PCIe 3.0 x16: 0 PCIe x16: n/a PCIe x8: n/a PCIe x4: n/a PCIe x1: 1 PCI-X: n/a PATA: n/a SATA II: n/a SATA3: 4 Ostale karakteristike: RAID: n/a Stražnji panel: Audio: 8-kanalni audio Mreža: 1x 10/100/1000 Ethernet Parallel: n/a Serial: n/a PS/2 mouse: 1 PS/2 keyboard: 1 D-sub: 1 DVI: n/a Display Port: 1 HDMI: 1 RJ45: 1 USB 2.0: 2 USB 3.0: 0 Konektori: S/PDIF Out: n/a 4-pin ATX 12V Power: n/a 8-pin ATX 12V Power: Y 20-pin ATX Power: n/a 24-pin ATX Power: Y Front panel audio: Y Chasis Intrusion: n/a CD Audio In: n/a Chasis Fan Power: 1 CPU Fan Power: 1 Format ploče: mATX WLAN connector: n/a Podrška za integrirani grafičk: Y SATA Express: n/a M.2: 1 U.2: n/a USB 3.1: 0 USB 3.1: 1 PCIe 4.0 x16: 1 USB 3.2: 2 PCIe 5.0 x16: 0
