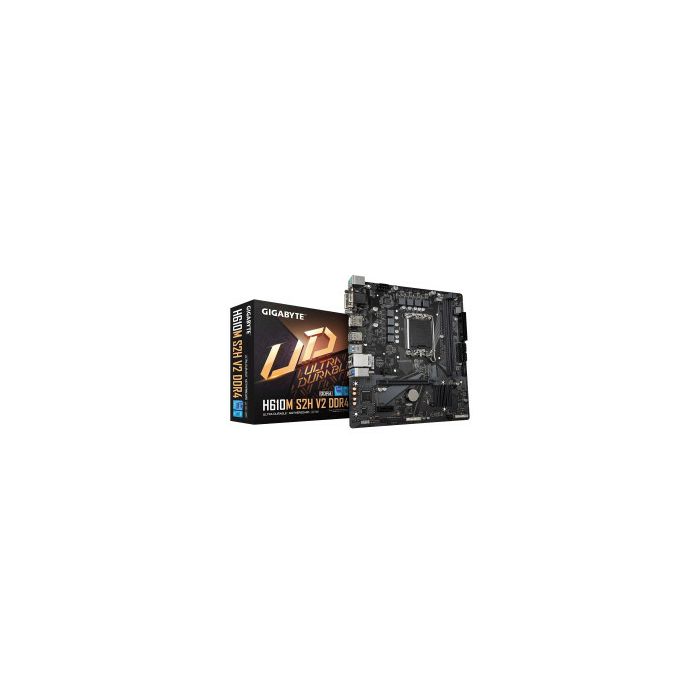

GigaByte MB H610M S2H V2 DDR4, S.1700, DDR4/3200, PCIe 4.0, SATA3, M.2, G-LAN, VGA/HDMI/DVI-D/DP, USB3.2, 7.1ch., mATX

Features - Supports 13th/12th Gen Intel® Core Series Processors - Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs - 6+1+1 Hybrid Digital VRM Design - GbE LAN with Bandwidth Management - NVMe PCIe 3.0 x4 M.2 - DisplayPort / HDMI / DVI-D / D-Sub Ports for Multiple Display - High Quality Audio Capacitors and Audio Noise Guard - Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP - GIGABYTE APP Center, Simple and Easy Use - Anti-Sulfur Resistors Design Specifications CPU - LGA1700 socket: Support for 13th Generation Intel Core Processors and 12th Generation Intel Core, Pentium Gold and Celeron Processors* * L3 cache varies with CPU - Please refer to "CPU Support List" for more information. Chipset - Intel H610 Express Chipset Memory - Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules - 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory - Dual channel memory architecture - Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) - Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules - Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) Onboard Graphics - Integrated Graphics Processor-Intel HD Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200 60 Hz - 1 x DVI-D port, supporting a maximum resolution of 1920x1200 60 Hz * The DVI-D port does not support D-Sub connection by adapter. - 1 x HDMI port, supporting a maximum resolution of 4096x2160 60 Hz * Support for HDMI 2.0 version and HDCP 2.3. - 1 x DisplayPort, supporting a maximum resolution of 4096x2304 60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.) Audio - Realtek Audio CODEC - High Definition Audio - 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. LAN - Realtek GbE LAN chip (1 Gbps/100 Mbps) Expansion Slots - CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 - Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 Storage Interface - Chipset: * 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support) * 4 x SATA 6Gb/s connectors USB - Chipset: * 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) * 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: * 4 x USB 2.0/1.1 ports available through the internal USB headers Internal I/O Connectors - 1 x 24-pin ATX main power connector - 1 x 8-pin ATX 12V power connector - 1 x CPU fan header - 2 x system fan headers - 1 x M.2 Socket 3 connector - 4- x SATA 6Gb/s connectors - 1 x RGB LED strip header - 1 x front panel header - 1 x front panel audio header - 1 x USB 3.2 Gen 1 header - 2 x USB 2.0/1.1 headers - 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) - 1 x serial port header - 1 x Clear CMOS jumper Back Panel Connectors - 1 x PS/2 keyboard port - 1 x PS/2 mouse port - 1 x D-Sub port - 1 x DVI-D port - 1 x DisplayPort - 1 x HDMI port - 2 x USB 3.2 Gen 1 ports - 4 x USB 2.0/1.1 ports - 1 x RJ-45 port - 3 x audio jacks I/O Controller: - iTE I/O Controller Chip H/W Monitoring - Voltage detection - Temperature detection - Fan speed detection - Water cooling flow rate detection - Fan fail warning - Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS - 1 x 128 Mbit flash - Use of licensed AMI UEFI BIOS - PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features - Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. - BIOS - Ambient LED - EasyTune - Smart Backup - System Information Viewer - Support for Q-Flash - Support for Xpress Install Bundled Software - Norton Internet Security (OEM version) - LAN bandwidth management software - Operating System * Support for Windows 11 64-bit * Support for Windows 10 64-bit - Form Factor: Micro ATX Form Factor; 23.0cm x 21.5cm
