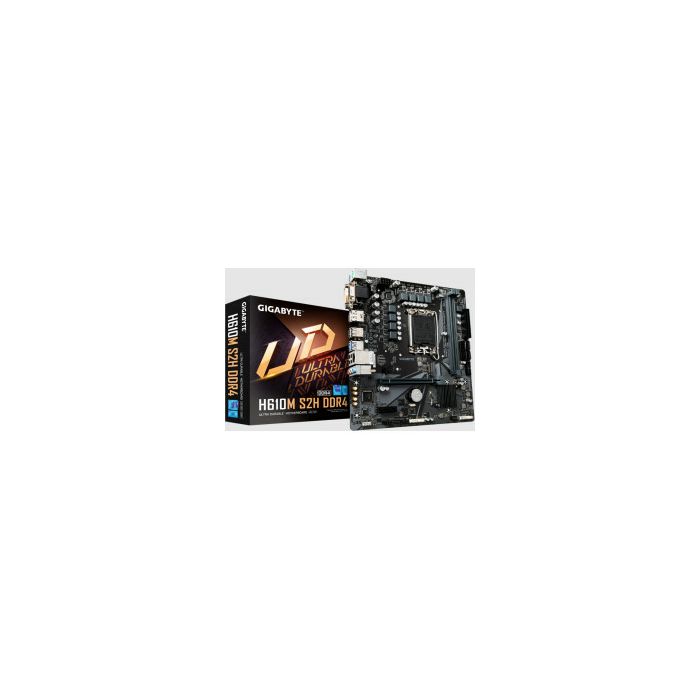

GigaByte MB H610M S2H DDR4 1.3, S.1700, DDR4/3200, PCIe 4.0, SATA3, M.2, G-LAN, VGA/HDMI/DVI-D/DP, USB3.2, 7.1ch., mATX

Features - Supports 12th Gen Intel Core Series Processors - Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs - 6+1+1 Phases Hybrid Digital VRM with MOS Heatsink - GIGABYTE Gaming LAN with Bandwidth Management - NVMe PCIe 3.0 x4 M.2 - HDMI / DVI-D / D-Sub Ports for Multiple Display - High Quality Audio Capacitors and Audio Noise Guard - Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP - Anti-Sulfur Resistors Design Specification CPU - LGA1700 socket: Support for 13th Generation Intel® Core™ Processors and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors* - L3 cache varies with CPU * Please refer to "CPU Support List" for more information. Chipset - Intel H610 Express Chipset Memory - Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules - 2 x DDR DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory - Dual channel memory architecture - Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) - Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules - Support for Extreme Memory Profile (XMP) memory modules Onboard Graphics - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 - 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. (Graphics specifications may vary depending on CPU support.) Audio - Realtek Audio CODEC - High Definition Audio - 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTEs website for details on configuring the audio software. - Support for S/PDIF Out LAN - Realtek GbE LAN chip (1 Gbps/100 Mbps)) Expansion Slots - 1 x PCI Express x16 slot, running at x16 * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCI Express x16 slot conforms to PCI Express 4.0 standard.) - 1 x PCI Express x1 slots (The PCIEX1 slots conform to PCI Express 3.0 standard.) Storage Interface Chipset: - 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 3.0 x4/x2 SSD support) - 4 x SATA 6Gb/s connectors USB Chipset: - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) - 4 x USB 2.0/1.1 ports on the back panel Chipset+2 USB 2.0 Hubs: - 4 x USB 2.0/1.1 ports available through the internal USB headers Internal I/O Connectors - 1 x 24-pin ATX main power connector - 1 x 8-pin ATX 12V power connector - 1 x M.2 Socket 3 connector - 4 x SATA 6Gb/s connectors - 1 x CPU fan header - 2 x system fan headers - 1 x RGB LED strip header - 1 x front panel header - 1 x front panel audio header - 1 x USB 3.2 Gen 1 header - 2 x USB 2.0/1.1 headers - 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) - 1 x serial port header - 1 x Clear CMOS jumper Back Panel Connectors - 1 x PS/2 keyboard - 1 x PS/2 mouse port - 1 x D-Sub port - 1 x DVI-D port - 1 x HDMI 2.0 port - 1 x DisplayPorts - 2 x USB 3.2 Gen 1 ports - 4 x USB 2.0/1.1 ports - 1 x RJ-45 port - 3 x audio jacks I/O Controller - iTE I/O Controller Chip H/W Monitoring - Voltage detection - Temperature detection - Fan speed detection - Fan fail warning - Fan speed control * Whether the fan speed control function is supported will depend on the fan you install. BIOS - 1 x 256 Mbit flash - Use of licensed AMI UEFI BIOS - PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features - Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS Ambient LED EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer - Support for Q-Flash - Support for Xpress Install Operating System - Support for Windows 11 64-bit - Support for Windows 10 64-bit Form Factor - Micro ATX Form Factor; 23.0cm x 21.5cm
