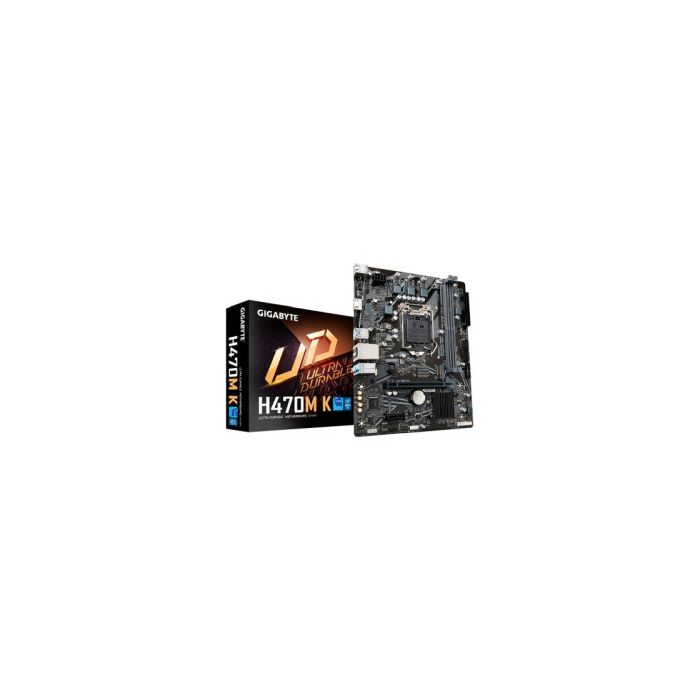

GigaByte MB H470M K S.1200, DDR4/3200, PCIe 3.0, SATA3, M.2, G-LAN, HDMI, USB3.2, 7.1ch., mATX

Features - Supports 11th/10th Gen Intel Core Processors - Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs - 8-Channel HD Audio with High Quality Audio Capacitors - NVMe PCIe Gen3 x4 2280 M.2 Connector - GbE LAN with Bandwidth Management - Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP - GIGABYTE APP Center, Simple and Easy Use - Anti-Sulfur Resistors Design Specifications CPU - LGA1200 package: *11th Generation Intel Core i9 processors/Intel® Core i7 processors/Intel® Core i5 processors * 10th Generation Intel Core i9 processors/Intel® Core i7 processors/Intel® Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors * L3 cache varies with CPU Chipset - Intel H470 Express Chipset Memory - 11th Generation Intel Core i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules - 10th Generation Intel Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MT/s memory modules - 10th Generation Intel Core i5/i3/Pentium/Celeron processors:Support for DDR4 2666/2400/2133 MT/s memory modules - 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory - Dual channel memory architecture - Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) - Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules - Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) Onboard Graphics - Integrated Graphics Processor-Intel® HD Graphics support: * 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. (Graphics specifications may vary depending on CPU support.) Audio - Realtek Audio CODEC - High Definition Audio - 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. LAN - Realtek GbE LAN chip (1 Gbps/100 Mbps) Expansion Slots - CPU: * 1 x PCI Express x16 slot, Supporting PCIe 3.0 and running at x16 - Chipset: * 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 Storage Interface - Chipset: * 1 x M.2 connector: Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD * 2 x SATA 6Gb/s connectors - Support for RAID 0, RAID 1, and RAID 5 - Intel Optane Memory Ready USB - Chipset: * 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) * 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) Internal I/O Connectors - 1 x 24-pin ATX main power connector - 1 x 8-pin ATX 12V power connector - 1 x CPU fan header - 1 x system fan header - 1 x RGB LED strip header - 1 x M.2 Socket 3 connector - 2 x SATA 6Gb/s connectors - 1 x front panel header - 1 x front panel audio header - 1 x USB 3.2 Gen 1 header - 1 x USB 2.0/1.1 header - 1 x serial port header - 1 x Clear CMOS jumper Back Panel Connectors - 1 x HDMI port - 2 x USB 3.2 Gen 1 ports - 4 x USB 2.0/1.1 ports - 1 x RJ-45 port - 3 x audio jacks I/O Controller - iTE I/O Controller Chip H/W Monitoring - Voltage detection - Temperature detection - Fan speed detection - Fan fail warning - Fan speed control - Whether the fan speed control function is supported will depend on the cooler you install. BIOS - 1 x 128 Mbit flash - Use of licensed AMI UEFI BIOS - PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features - Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. * @BIOS * Ambient LED * EasyTune * ON/OFF Charge * Smart Backup * System Information Viewer - Support for Q-Flash - Support for Xpress Install Bundled Software - Norton® Internet Security (OEM version) - LAN bandwidth management software Operating System - Support for Windows 11 64-bit - Support for Windows 10 64-bit Form Factor - Micro ATX Form Factor; 22.6cm x 18.5cm Main Board Desktop - Dimensions & Weight - Form Factor: Micro ATX - Height (mm): 185 mm - Width (mm): 226 mm Logistic - Pack Weight Brutto (kg): 0.6 kg - Pack Weight Netto (kg): 0.9 kg - Box Weight Brutto (kg): 12 kg - Retail Packaging Net Weight Carton: 0.2 kg - Retail Packaging Net Weight Plastic: 0.1 kg
