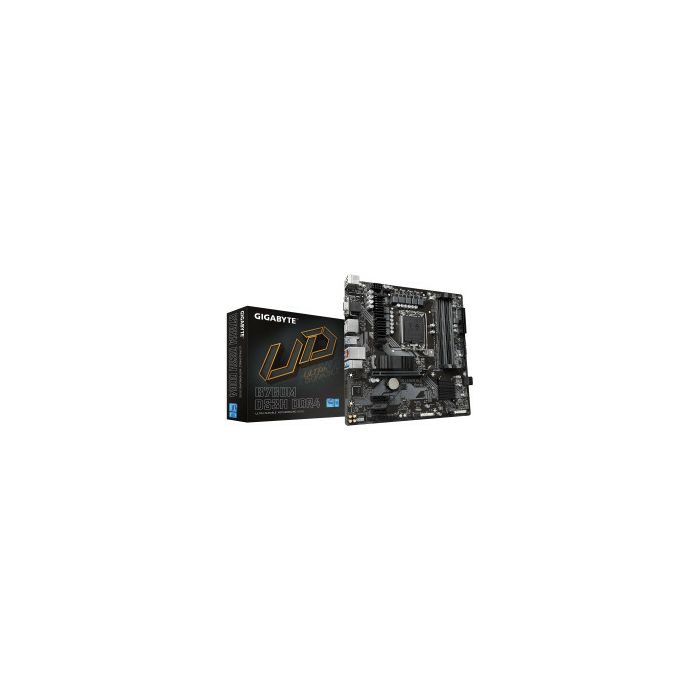

GigaByte MB B760M DS3H DDR4, S.1700, DDR4/5333(OC), PCIe 4.0, 2.5 G-LAN, VGA/HDMI/2×DP, USB-C, mATX

Features - Intel Socket LGA 1700:Support 13th and 12th Gen Series Processors - Unparalleled Performance:Hybrid 6+2+1 Phases Digital VRM Solution - Dual Channel DDR4:4*DIMMs XMP Memory Module Support - Next Generation Storage:2*PCIe 4.0 x4 M.2 Connectors - M.2 Thermal Guard:To Ensure M.2 SSD Performance - EZ-Latch:PCIe 4.0x16 Slot with Quick Release Design - Fast Networks:2.5GbE LAN - Extended Connectivity:Rear USB-C 10Gb/s, DP, HDMI - Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP - Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card Specifications CPU - LGA1700 socket: Support for the 13th and 12th Generation Intel® Core, Pentium Gold and Celeron Processors L3 cache varies with CPU (Please refer "CPU Support List" for more information.) - Chipset: Intel B760 Express Chipset Memory - Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules - 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory - Dual channel memory architecture - Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) - Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules - Support for Extreme Memory Profile (XMP) memory modules * (Please refer "Memory Support List" for more information.) Onboard Graphics Integrated Graphics Processor-Intel HD Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version. * (Graphics specifications may vary depending on CPU support.) * Support for up to quad-display at the same time Audio: - Realtek Audio CODEC - High Definition Audio - 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. * Support for S/PDIF Out LAN - Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Expansion Slots - CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 - Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 Storage Interface - CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) - Chipset: * 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) * 4 x SATA 6Gb/s connectors * RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices USB - Chipset: * 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support * 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) * 2 x USB 2.0/1.1 ports on the back panel Chipset+2 USB 2.0 Hubs: - 4 x USB 2.0/1.1 ports available through the internal USB headers Internal I/O Connectors - 1 x 24-pin ATX main power connector - 1 x 8-pin ATX 12V power connector - 1 x CPU fan header - 3 x system fan headers - 1 x addressable LED strip header - 1 x RGB LED strip header - 2 x M.2 Socket 3 connectors - 4 x SATA 6Gb/s connectors - 1 x front panel header - 1 x front panel audio header - 1 x USB 3.2 Gen 1 header - 2 x USB 2.0/1.1 headers - 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) - 1 x serial port header - 1 x parallel port header - 1 x S/PDIF Out header - 1 x Q-Flash Plus button - 1 x reset button - 1 x reset jumper - 1 x Clear CMOS jumper Back Panel Connectors - 2 x USB 2.0/1.1 ports - 1 x PS/2 keyboard/mouse port - 1 x D-Sub port - 1 x HDMI port - 2 x DisplayPorts - 3 x USB 3.2 Gen 1 ports - 1 x USB Type-C port, with USB 3.2 Gen 2 support - 1 x RJ-45 port - 3 x audio jacks I/O Controller - iTE I/O Controller Chip H/W Monitoring - Voltage detection - Temperature detection - Fan speed detection - Water cooling flow rate detection - Fan fail warning - Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS - 1 x 128 Mbit flash - Use of licensed AMI UEFI BIOS - PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features - Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. - Support for Q-Flash - Support for Q-Flash Plus Bundled Software - Norton Internet Security (OEM version) - LAN bandwidth management software Operating System - Support for Windows 11 64-bit - Support for Windows 10 64-bit Form Factor - Micro ATX Form Factor; 24.4cm x 24.4cm
