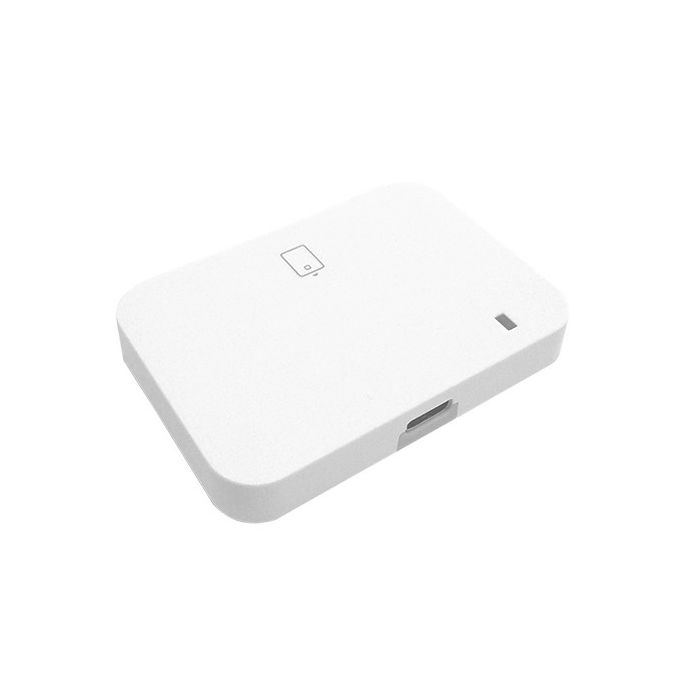

Circle čitač pametnih kartica, USB (CIR135A)

CONTACT SMART CARD READER
- A handy contact smart card reader comes with a firmware upgradable powerful core and an ergonomic design featuring a detachable USB cable
- Contact Smart Card Reader is a handy contact smart card reader with powerful core and modern design to bring about fast and secure data transmission for various smart card applications, such as e-government, e-healthcare and network log-on

Features
- Supports ISO/IEC 7816 Part 1/2/3/4 standard
- Supports full-sized ISO/IEC 7816 Class A/ B/ C cards with T=0 or T=1 protocol, J-LIS cards and memory cards
- Supports extended APDU
- Complies with CCID standard
- Conforms to PC/SC specifications
- Firmware upgradable
- Works on different operating systems
- Detachable USB cable 1.0m

Specifications
CONTACT SMART CARD INTERFACE
- Standard: ISO/IEC 7816 Part 1/2/3/4
- Protocol: T=0, T=1
- Supported Card Types: ISO/IEC 7816 Class A/ B/ C (5V/ 3V/ 1.8V) cards, J-LIS cards, Memory cards
- Supported Card Size: ID-1 (Full size)
- Supply Current: 60 mA @5V, 50mA @ 3V and 30mA @1.8V
- Speed: 9.6 - 826 kbps
- Short Circuit Protection: Support
- Clock Frequency: Up to 16 MHz (Default: 4.8 MHz)
- Card Connector: Sliding, Min. 100.000 insertion cycles
- Extended APDU: Support

PHYSICAL CHARACTERISTICS
- Dimensions (L×W×H): 70.0×48.0×10.5 mm
- Weight: 46.2 g (+/- 5 g)
- Casing: White and Grey ABS

HOST INTERFACE
- USB Standard: USB 2.0 Full Speed (12 Mbps)
- USB Connector Type: Type C (Female)
- USB Cable: 1.0m, Detachable USB Cable

POWER
- Power Supply: USB Bus-powered (5V DC)
- Current Consumption: <100 mA (Operating), <2 mA (Standby)

HUMAN INTERFACE
- LED: 1 LED: 1 Blue (Operation Status)

SOFTWARE AND DRIVER
- Firmware Upgradable: Support, via USB
- Driver: CCID
- Application Programming Interface (API): PC/SC

OPERATING CONDITIONS
- Operating Temperature: -10 to 55°C
- Operating Humidity: Max. 95% (non-condensing)
- Storage Temperature: -20 to 70 °C
- Meantime Between Failure (MTBF): 600.000 hours

COMPLIANCE / CERTIFICATIONS
- Standards / Systems: ISO/IEC 7816, EMV Co Contact Terminal Level 1, USB 2.0 Full Speed, CCID, Microsoft WHQL
- Regulatory / Environmental: EN 62368, BSEN 62368, CE, FCC, UKCA, VCCI, RoHS3, REACH

OPERATIONAL ENVIRONMENT
- Supported Operating Systems: Windows 7 SP1 and above, Linux, macOS 10.12 and above, Android 6.0 and above
