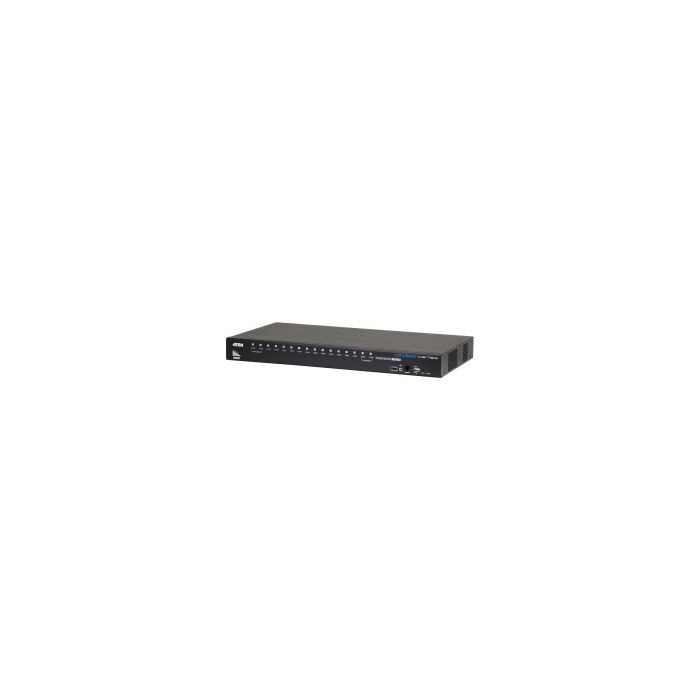

Aten 16-Port USB HDMI/Audio KVM Switch (CS17916)

- The CS1798 / CS17916 8/16-port USB HDMI KVM Switch is a multi-purpose appliance that consolidates access and control of up to 8/16 HDMI computers from a single USB keyboard, USB mouse, and monitor console.
The CS1798 / CS17916 can be cascaded up to three levels – to control up to 512 computers (CS1798); or two levels – up to 256 computers (CS17916) – all from a single console.

- In addition, the CS1798 / CS17916 features multi-display functionality, which enables the use of standard USB cables to stack up to 8 switches in a multi-display installation where each computer is fitted with
multiple video cards. It allows users to contrast, analyze and monitor video output in convenient ways,
substantially simplifying the working environment.

- The CS1798 / CS17916 supporting ATEN’s on-screen display (OSD) function, allowing it to access any computer connected to the installation, which offers OSD configuration backup / restore functions to save or back up the OSD settings and restore them as needed. The CS1798 / CS17916 provides multimedia keyboard support and is audio enabled. Users can listen to the audio output of each computer on two sets of speakers (on a one at- a-time basis).

Specifications
Computer Connections
- Direct: 16
- Maximum: 256 (via Cascade)
- Port Selection: OSD, Hotkey, Pushbutton

Connectors
- Console Ports
• 1 x HDMI Female
• 2 x USB Type A Female
• 2 x 3.5mm Audio Jack Female (Green; 1 x front panel, 1 x rear panel)
- KVM Ports
• 16 x HDMI Female
• 16 x USB Type B Female
• 16 x 3.5mm Audio Jack Female (Green)
- Firmware Upgrade: 1 x RJ11 Female
- Power: 1 x DC Jack
- USB Hub: 2 x USB Type A Female (1 x front panel, 1 x rear panel)

Switches
- Port Selection: 16 x Pushbutton
- Reset: 1 x Semi-recessed Pushbutton
- Firmware Upgrade: 1 x Slide Switch

LEDs
- USB Link: 16 (Green)
- Power: 1 (Dark Green)
- On Line /Selected: 16 (Orange)

Emulation
- Keyboard / Mouse : USB
- Video: 1920 x 1080 60Hz; 1920 x 1200 @ 60Hz
- Scan Interval: 1 – 255 seconds (default: 5 sec.)
- Power Consumption: DC5V:9.18W:69BTU

Environmental
- Operating Temperature: 0 – 50°C
- Storage Temperature: -20 – 60°C
- Humidity: 0 – 80% RH, Non-condensing

Physical Properties
- Housing. Metal
- Weight: 3.86 kg ( 8.5 lb )
- Dimensions (L x W x H): 43.24 x 25.72 x 4.40 cm (17.02 x 10.13 x 1.73 in.)
*Note: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
